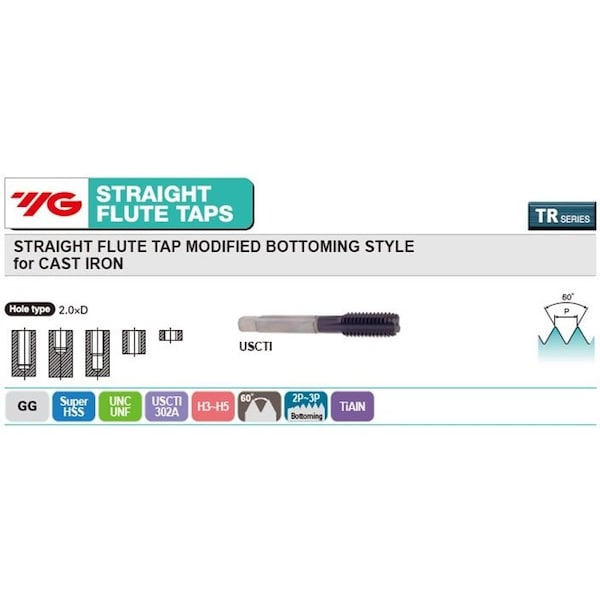

Hss-Pm Straight Flute Radial Coolant Hole Tialn Coated Tap
Mfr # TR525R
Zoro # G4490699
product price: $73.95
/eaKey Features
Number of Flutes
4
Tap Thread Size
7/16-14
Tap Thread Type
UN
Thread Limit
H5
Tap Finish
TiAlN Coated
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TR525R
Zoro #
G4490699
UPC #
-
Country of Origin
Unknown
Dimensions
Tap Thread Size
7/16-14
Details
Number of Flutes
4
Tap Thread Type
UN
Thread Limit
H5
Tap Finish
TiAlN Coated
Tap Material
HSS-PM (Powdered Metallurgy HSS)
Tap Chamfer
2-3 Pitch Lead
Tap Shank Type
USCTI Shank CNC Tap w/Radial Coolant Holes
Flute End Type
Straight Flute
Thread Direction
Right Hand
Tap Style
Modified Bottoming
Series
TR-R
Coolant Through
Yes
Hole Type
Blind Hole
Application
Cast Iron
Cutting Direction
Right Hand
Type
CNC Tap With Coolant Hole
