  11. Pipe Tap, 1/4"-18, Taper, 5 Flutes, NPT
Yg-1 Tool Pipe Tap, 1/4"-18, Taper, 5 Flutes, NPT S1400 - main

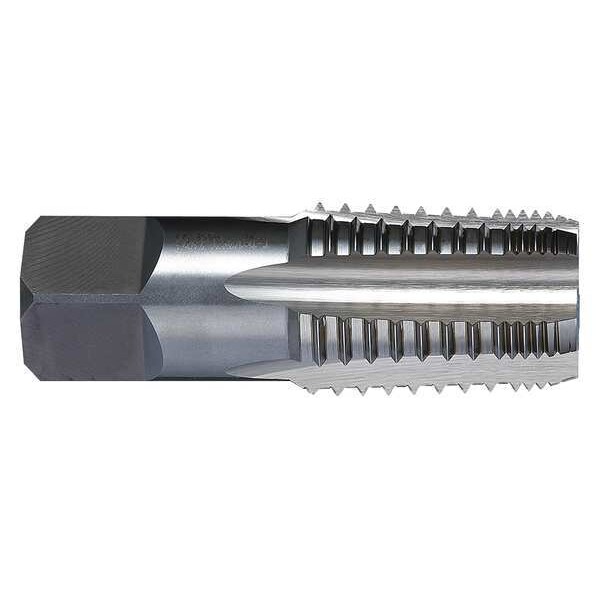

Pipe Tap, 1/4"-18, Taper, 5 Flutes, NPT

  • Mfr # S1400

  • Zoro # G9247183

product price: $39.89
/ea

Key Features

Tap Thread Size
1/4"-18
Tap Chamfer
Taper
Number of Flutes
5
Tap Thread Type
NPT
Tap Style
Pipe
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S1400
Zoro #
G9247183
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Tap Thread Size
1/4"-18
Pitch Diameter Limit
Not Rated
Tap Size
1/4"
Thread Length
1-1/16"
Overall Length
2-7/16"
Shank Dia.
0.562"
Tap Dimension Type
Pipe
Size
44200
Thread Size
1/4"-18
Shank Length
1 1/8 in
75% Thread Drill Size
0.4375 in
Tap Length Standard
ANSI
Useable Length (in)
1.06
Length/ Diameter
2.0 x D
Drill Size (mm)
11.11
Shk. Dia. (metric)
14.29
Diameter (inch)
0.25
Sqr. Size (inch)
0.421
Diameter (metric)
6.35
Chamfer Length
2P-3P
Sqr. Size (metric)
10.69
Drill Size (inch)
0.4375
Size & Pitch
43104
Useable Length (mm)
26.92
Shk. Dia. (inch)
0.5625

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
5
Tap Thread Type
NPT
Tap Style
Pipe
Thread Direction
Right Hand
Tap Grouping
Tap
List Number
S1
Tap Finish
Bright
Standards
NPTF
Number of Pieces
1
Tap Material
Vanadium High Speed Steel
Cutting Direction - Machining
Right Hand
Finish
Bright
Material
HSSE-V3
Series
S1
Threads per Inch
18
Primary Material Application
Cast Iron, Steel
Primary Material Application ISO Code
K, P
Material Grade - Machining
S1
Extended Neck
Yes
Tap Shank Standard
ANSI
Spiral Direction
Neutral
Interrupted Thread
Yes
Measurement System
Fractional Inch
Secondary Material Application ISO Code
P
Thread Standard
NPTF
Secondary Material Application
Steel
Helix Angle
0 Degrees
System of Measurement
Inch
Thd. Lgth. (inch)
1.06
Blank Standard
311
Chamfer Type
Modified Bottoming
Connection (mm)
14.29 x 10.69
Thread Series
NPTF
Package (H)
0.75
OAL (metric)
62
Connection (in)
0.5625 x 0.421
Package (L)
2.75
Thd. Lgth. (metric)
26.9
Sqr. Lgth. (inch)
0.44
Sqr. Lgth. (metric)
11.18
Weight
0.117
OAL (inch)
2.44
Helix Angle
0
Shank Type
Square
Package (W)
0.75
Trade Name
YG Pipe Taps
Tap Type
Pipe
Pitch
18

Description

Pipe and Conduit Thread Tap, Thread Size 1/4 In.-18, NPTF, Overall Length 2 7/16 in, Cobalt High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 1/16 in, 75 Percent Thread Drill Size 0.4375 in, Number of Flutes 5
