  11. Pipe Tap, 3/4"-14, Taper, 5 Flutes, NPT

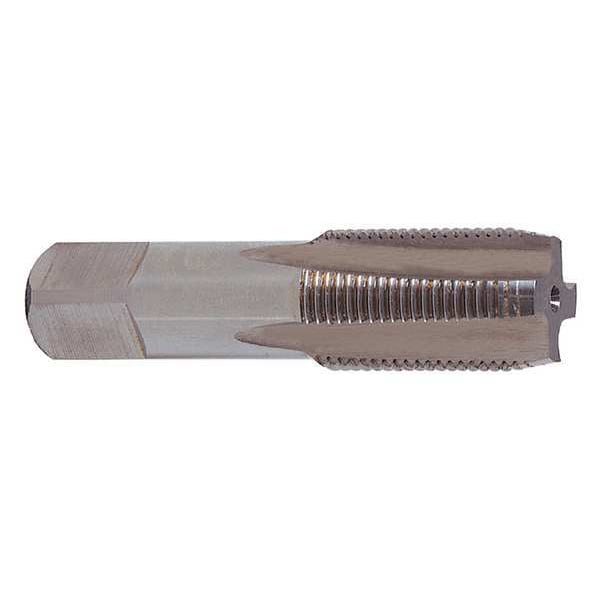

Yg-1 Tool Pipe Tap, 3/4"-14, Taper, 5 Flutes, NPT R8700 - main

Pipe Tap, 3/4"-14, Taper, 5 Flutes, NPT

  • Mfr # R8700

  • Zoro # G9247174

product price: $102.99
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
3/4"-14
Tap Chamfer
Taper
Number of Flutes
5
Tap Thread Type
NPT
Thread Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R8700
Zoro #
G9247174
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Tap Thread Size
3/4"-14
Shank Dia.
0.906"
Pitch Diameter Limit
Not Rated
Tap Dimension Type
Pipe
Overall Length
3-1/4"
Tap Size
3/4"
Thread Length
1-3/8"
Size
3/4 X 14
Tap Length Standard
ANSI
Shank Length
1 7/8 in
75% Thread Drill Size
0.9063 in
Thread Size
3/4"-14
Drill Size (mm)
23.02
Sqr. Size (inch)
0.679
Length/ Diameter
2.0 x D
Diameter (metric)
19.05
Drill Size (inch)
0.9063
Chamfer Length
2P-3P
Useable Length (mm)
35.05
Size & Pitch
41702
Useable Length (in)
1.38
Diameter (inch)
0.75
Shk. Dia. (metric)
23.02
Sqr. Size (metric)
17.25
Shk. Dia. (inch)
0.9063

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
5
Tap Thread Type
NPT
Thread Direction
Right Hand
Tap Finish
TiN
Tap Style
Pipe
List Number
R8
Number of Pieces
1
Tap Material
Vanadium High Speed Steel
Standards
NPTF
Tap Grouping
Tap
Cutting Direction - Machining
Right Hand
Material
HSSE-V3
Finish
TIN
Series
R7
Material Grade - Machining
R8
Measurement System
Fractional Inch
Extended Neck
Yes
Thread Standard
NPTF
Coolant Fed
Coolant Through
Spiral Direction
Neutral
Primary Material Application
Cast Iron, Steel
Tap Shank Standard
ANSI
Primary Material Application ISO Code
K, P
Threads per Inch
14
Helix Angle
0 Degrees
Pitch
14
Thd. Lgth. (metric)
35.1
OAL (inch)
3.25
Package (W)
1.25
Package (H)
1.25
Thd. Lgth. (inch)
1.38
Blank Standard
311
System of Measurement
Inch
Chamfer Type
Modified Bottoming
Connection (in)
0.9063 x 0.679
Tap Type
Pipe
Weight
0.51
Trade Name
YG Pipe Taps
Package (L)
3.625
Shank Type
Square
OAL (metric)
82.6
Thread Series
NPTF
Connection (mm)
23.02 x 17.25
Sqr. Lgth. (metric)
17.53
Sqr. Lgth. (inch)
0.69
Helix Angle
0

Description

Pipe and Conduit Thread Tap, Thread Size 3/4 In.-14, NPTF, Overall Length 3 1/4 in, Cobalt High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 3/8 in, 75 Percent Thread Drill Size 0.9063 in, Number of Flutes 5
