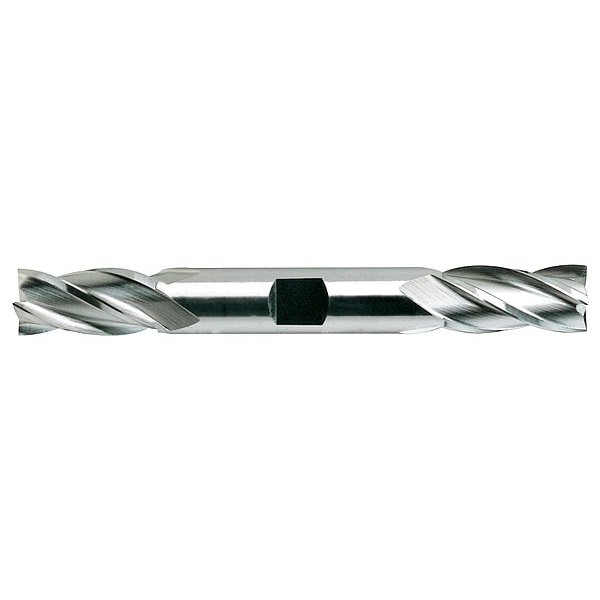

Yg-1 Tool Sq. End Mill, Double End, HSS, 7/32 13295CC - main

Sq. End Mill, Double End, HSS, 7/32

  • Mfr # 13295CC

  • Zoro # G9329973

product price: $42.79
/ea

Key Features

Milling Diameter
7/32"
Number of Flutes
4
Length of Cut
0.5625 in
Single End/Double End
Double
End Mill Cutting Type
Center Cutting
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
13295CC
Zoro #
G9329973
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Milling Diameter
7/32"
Length of Cut
0.5625 in
Shank Dia.
3/8 in
Overall Length
3 1/4 in
Milling Dia.
0.21875 in

Details

Number of Flutes
4
Single End/Double End
Double
End Mill Cutting Type
Center Cutting
Grade
General Purpose
Cutting Direction
Right Hand
Helix Angle
30 Degrees
Item
Square End Mill
End Mill Application
Finishing
End Mill Style
Square
Finish
TiCN
List Number
E2053
Finish - Machining
TiCN
Drilling Tool Configuration
Individual
Shank Type - Machining
Weldon Flat
Material Applications
Steel, Carbon Steel
Measurement System
Inch
Material - Machining
Cobalt
Material Grade - Machining
General Purpose
Primary Material Application
Steel
Primary Material Application ISO Code
P
Flute Spacing
Fixed
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Secondary Material Application ISO Code
N
Max. Helix Angle
30 Degrees

Description

Square End Mill, 0.21875 in Milling Dia., Cobalt, TiCN, Weldon Flat, Length of Cut 0.5625 in, Overall Length 3 1/4 in, Shank Dia. 3/8 in, Neck Dia. Not Applicable
