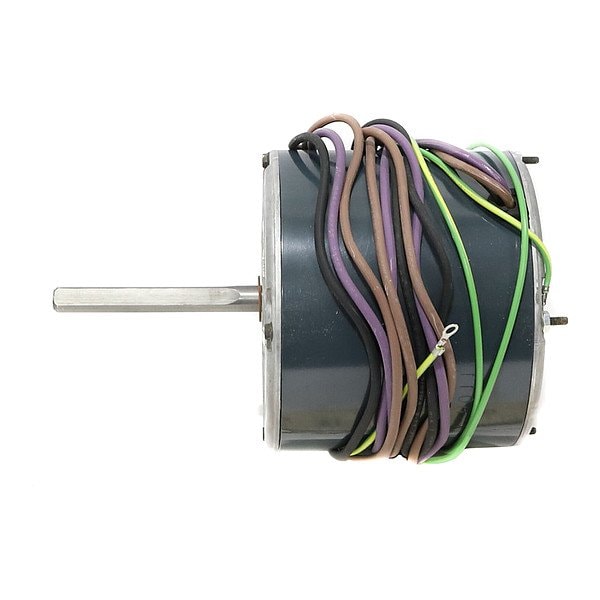

Condenser Fan Motor, 1/2 hp
Mfr # S1-024-40910-000
Zoro # G316065844
product price:Â $516.99
/ea
Free Shipping & Returns
Key Features
HP
1/2 hp
Motor Application
Fans
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Rotation
CWSE
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
S1-024-40910-000
Zoro #
G316065844
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Shaft Length
3-13/16 in
Length Less Shaft
6 in
Manufacturers Warranty Length
1 yr
Overall Length
9 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,090 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 2.5 A, Not Applicable Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor Not Applicable, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. Not Applicable, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
