Shop ZINSCO

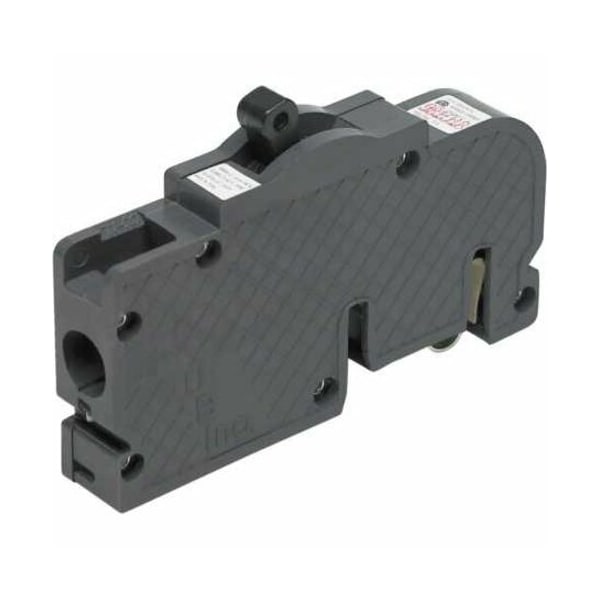

Miniature Circuit Breaker, UBIZ Series, 20A, 1 Pole, 120/240V AC, 10kA at 120V AC

  • Mfr # UBIZ20

  • Zoro # G0276902

product price:  $45.45
/ea

Key Features

Series
UBIZ
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UBIZ20
Zoro #
G0276902
UPC #
094925030396
Country of Origin
Philippines

Dimensions

Frame Size
125A/HACR
Width
3/4 in
Depth
2.53 in
Height
4.81 in
Max. Wire Size
6 AWG
Min. Wire Size
14 AWG
Length
4.8 in

Details

Item
Miniature Circuit Breaker
Series
UBIZ
Amps
20 A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120V AC
Trip Type
Thermal
Instantaneous Trip
No
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
For Use With
Zinsco Load Centers
Standards
ETL Listed, UL Listed
Compatible Panelboard/Load Center Series
ML12
Min. Operating Temp.
0 Degrees F
Additional Information
HACR (heating and air conditioning) rated, 120/240 volt AC, Requires one 3/4" space, SWD rated, Type: Z
Form Factor
Plug-in
Compatibility
Zinsco Load Centers
Voltage
120/240VAC
Max. Operating Temp.
250 Degrees F

Description

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series ML12, Phase Single, Series UBIZ, Max. AIR Rating 10kA at 120V AC, For Use With Zinsco Load Centers, Terminal Connection Lug, Frame Size 125A/HACR, Length 4.8 in, Width 0.8 in, Depth 2.5 in, Min. Operating Temp. 0 Degrees F
