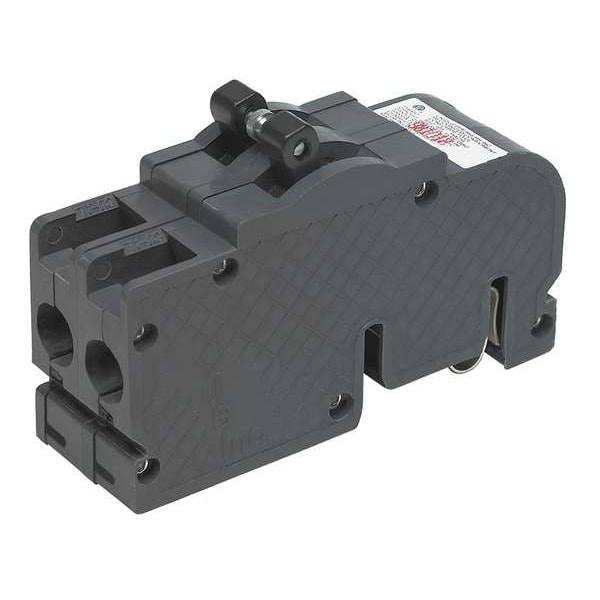

Miniature Circuit Breaker, UBIZ Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # UBIZ220-1
Zoro # G3149851
product price:Â
$
111.99
/ea
Free Shipping & Returns
Key Features
Series
UBIZ
Amps
20 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- UBIZ220-1
- Zoro #
- G3149851
- UPC #
- 094925030419
- Country of Origin
- China
- Item
- Miniature Circuit Breaker
- Series
- UBIZ
- Amps
- 20 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal
- Instantaneous Trip
- No
- Terminal Connection
- Lug
- DC Voltage Rating
- Not Rated
- Standards
- ETL Listed, UL Listed
- For Use With
- Zinsco Load Centers
- Max. Operating Temp.
- 250 Degrees F
- Min. Operating Temp.
- 0 Degrees F
- Compatible Panelboard/Load Center Series
- ML12
- Voltage
- 120/240VAC
Description
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series ML12, Phase Single, Series UBIZ, Max. AIR Rating 10kA at 120/240V AC, For Use With Zinsco Load Centers, Terminal Connection Lug, Frame Size 125A/HACR, Length 4.8 in, Width 1.5 in, Depth 2.5 in, Min. Operating Temp. 0 Degrees F
