  5. Miniature Circuit Breaker, UBIZ Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC

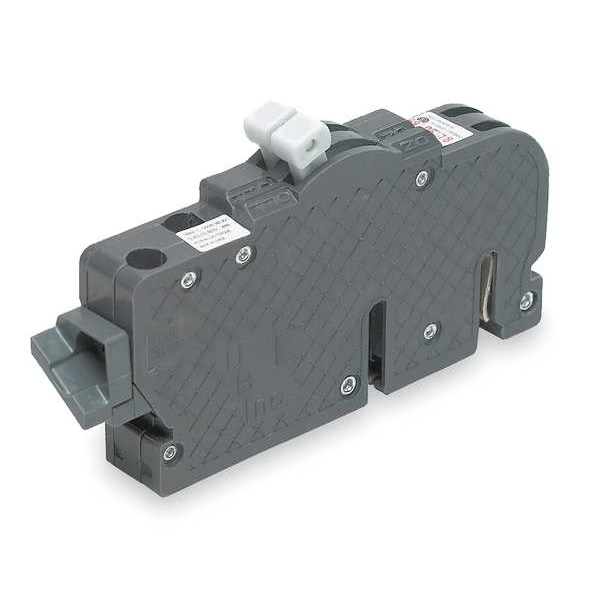

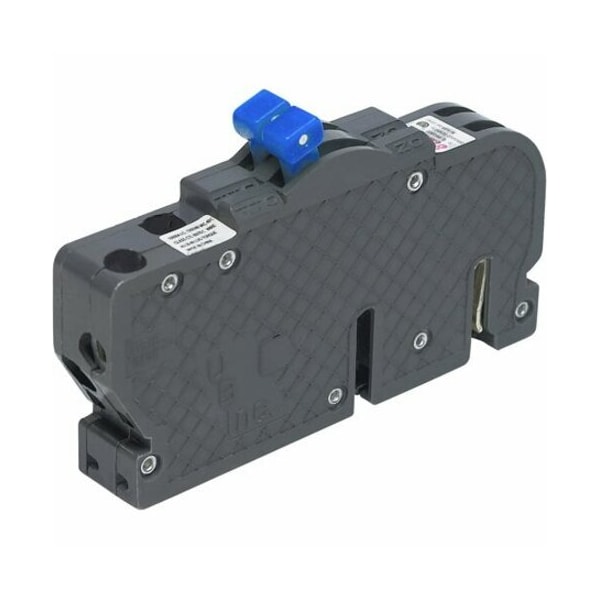

Zinsco Miniature Circuit Breaker, UBIZ Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC UBIZ0230 - main

CAD Drawings

Download CAD Files

Miniature Circuit Breaker, UBIZ Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC

  • Mfr # UBIZ0230

  • Zoro # G1942631

CAD Available
product price:  $90.29
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Series
UBIZ
Amps
30A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UBIZ0230
Zoro #
G1942631
UPC #
094925030341
Country of Origin
Philippines

Dimensions

Frame Size
125A/HACR
Width
3/4 in
Depth
2.53 in
Height
5.63 in
Min. Wire Size
14 AWG
Max. Wire Size
8 AWG
Length
5.63 in

Details

Item
Miniature Circuit Breaker
Series
UBIZ
Amps
30A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
ETL listed
For Use With
Zinsco Load Centers
Min. Operating Temp.
0 Degrees F
Max. Operating Temp.
250 Degrees F
Compatible Panelboard/Load Center Series
ML12
Form Factor
Plug-in
Compatibility
Zinsco Load Centers
Additional Information
120/240 Vac, Type: Z, Requires one 3/4" space
Voltage
120/240VAC
CAD Available
Yes
Instantaneous Trip
No
Trip Type
Thermal

Description

Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series ML12, Phase Single, Series UBIZ, Max. AIR Rating 10kA at 120/240V AC, For Use With Zinsco Load Centers, Terminal Connection Lug, Frame Size 125A/HACR, Length 5.63 in, Width 0.75 in, Depth 2.53 in, Min. Operating Temp. 0 Degrees F
