Shop ZOELLER

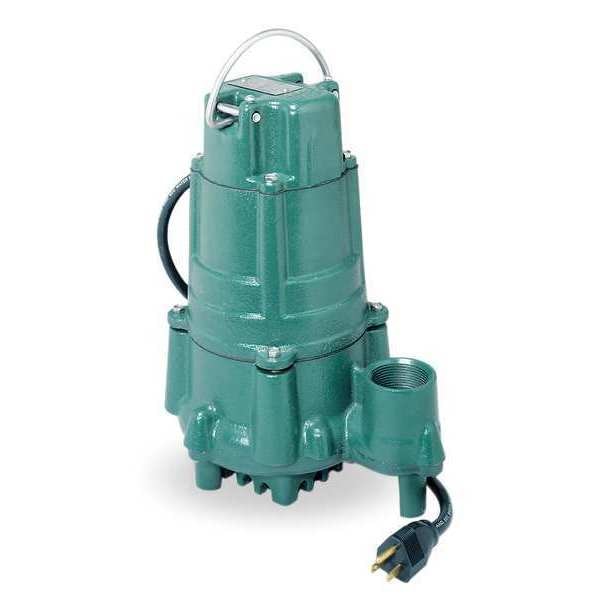

1 HP 1-1/2" F Submersible Sump Pump 115V None

  • Mfr # 140-0002

  • Zoro # G3083762

product price:  $745.99
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
140-0002
Zoro #
G3083762
UPC #
053514093327
Country of Origin
United States

Dimensions

Cord Length
20 ft
Max. Diameter Solids
3/4 in
Manufacturers Warranty Length
1 yr
Height
12-5/8"
Max. Dia. Solids
1/2"
Cord Length - Pumps
20 ft.
Diameter
10-1/8"
Min. Sump Pit Dia.
18 in
Body Dia.
10 1/8 in
Discharge Dia.
1 1/2 in
Overall Height
12 5/8 in
Solids Diameter - Maximum
3/4 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
10 1/8 in
Discharge Diameter
1 1/2 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1
Hz
60 Hz
Impeller Material
Thermoplastic
Max. Head
50 ft
Max. Temp.
130 Degrees F
Motor RPM
3450
Motor Type
Permanent Split Capacitor
Shaft Seal
Carbon/Ceramic
Voltage
115V
Phase
Single
Voltage - Pumps
120VAC
Max. Liquid Temp.
130 Degrees F
Amps
12 A
Switch Type
None
Switch Type - Pumps
No Switch Included
GPM of Water @ 20 Ft. of Head
66
GPM of Water @ 30 Ft. of Head
50
Item - Sump Pumps
Submersible Sump Pump
Base Material
Cast Iron
GPM of Water @ 5 Ft. of Head
86
Gauge/Conductor
16/3
Pump Body Material
Cast Iron
NEC Cord Designation
SOW
Alarm Included
No
GPM of Water @ 10 Ft. of Head
80
Shaft Seal Material - Pumps
Carbon, Ceramic
Amps - Pumps
12.00
Thermal Protection
Manual
Max. Head - Pumps
50 ft.
Item
Submersible Sump Pump
GPM of Water @ 25 Ft. of Head
59
GPM of Water @ 40 Ft. of Head
32
GPM of Water @ 15 Ft. of Head
73
Mechanical Seal
CRB/CMC
Alarm
No
Impeller Material - Pumps
Polypropylene
Flow Rate @ 20 Ft. of Head
66 gpm
Discharge Standard
NPT
Flow Rate @ 10 Ft. of Head
80 gpm
Duty Cycle
Continuous
Discharge Gender
Female
Rated Voltage
115V AC
Switch Electrical Connection
No Switch Included
Body Material
Cast Iron
Switch Actuation
No Switch Included
Flow Rate @ 15 Ft. of Head
73 gpm
Flow Rate @ 5 Ft. of Head
86 gpm
RPM
3,450 RPM
Discharge
1 1/2 in FNPT
Volute Material
Cast Iron
Motor Housing Material
Cast Iron
Horsepower
1 hp
Includes Alarm
No Alarm Included
Flow Rate @ 10 ft of Head
80 gpm
Requires Control Panel
Control Panel Required
Current
12 A
Flow Rate @ 40 ft of Head
28 gpm
Liquid Temperature - Maximum
130 Degrees F
Hazardous Location Class
Not Rated
For Media Type
Effluent Water
Shaft Seal Material
Carbon/Ceramic
Flow Rate @ 20 ft of Head
66 gpm
Feet of Head - Maximum
50 ft
Power Source
Corded Electric
Rotation Speed - Maximum
3,450 RPM
Shaft Seal Type
Single Mechanical
Impeller Design
Vortex
Power Source - TS Only
Corded Electric

Description

Submersible Sump Pump, HP 1, Rated Voltage 115V AC, Hz 60 Hz, Amps 12 A, Body Material Cast Iron, Impeller Material Thermoplastic, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 80 gpm, Flow Rate @ 15 Ft. of Head 73 gpm, Flow Rate @ 20 Ft. of Head 66 gpm, Max. Head 50 ft, Min. Sump Pit Dia. 18 in, Body Dia. 10 1/8 in, Overall Height 12 5/8 in, Cord Length 20 ft, Discharge Dia. 1 1/2 in
