Shop ZOELLER

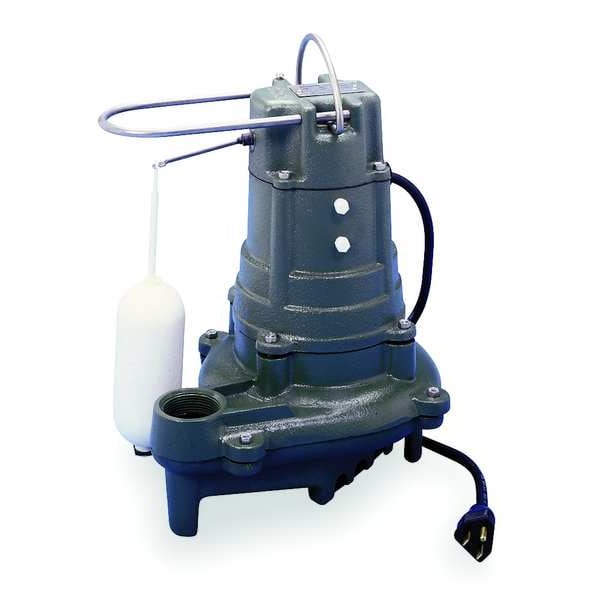

1/2 HP 1-1/2" F Submersible Sump Pump 115V Vertical

  • Mfr # 137-0001
  • Zoro # G2755627
product price:
$
522.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/2" F
Housing Material
Cast Iron or Bronze
HP
1/2
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
137-0001
Zoro #
G2755627
UPC #
053514014339
Country of Origin
United States

Dimensions

Cord Length
10 ft
Max. Dia. Solids
5/8"
Manufacturers Warranty Length
3 yr
Diameter
11-3/4"
Max. Diameter Solids
5/8 in
Height
13"
Cord Length - Pumps
10 ft.
Min. Sump Pit Dia.
18 in
Overall Height
13 in
Discharge Dia.
1 1/2 in
Body Dia.
11 3/4 in
Width at Widest Point
12 1/4 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Body Diameter
11 3/4 in
Solids Diameter - Maximum
5/8 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast Iron or Bronze
HP
1/2
Hz
60 Hz
Impeller Material
Bronze/Cast Iron
Max. Head
26 ft
Max. Temp.
130 Degrees F
Motor RPM
1725
Motor Type
Thermally Protected
Shaft Seal
Carbon/Ceramic
Voltage
115V
Phase
Single
Max. Head - Pumps
26 ft.
GPM of Water @ 5 Ft. of Head
90
Amps - Pumps
10.70
GPM of Water @ 20 Ft. of Head
36
Base Material
Cast Iron
GPM of Water @ 10 Ft. of Head
79
Max. Liquid Temp.
130 Degrees F
Alarm
No
Amps
10.7 A
Off Point
2 3/4
Thermal Protection
Auto
Gauge/Conductor
16/3
NEC Cord Designation
SJOW
Mechanical Seal
CRB/CMC
GPM of Water @ 15 Ft. of Head
58
Alarm Included
No
Switch Type
Vertical
Item
Submersible Sump Pump
Item - Sump Pumps
Submersible Sump Pump
Switch Type - Pumps
Vertical
Pump Body Material
Cast Iron
On Point
10 in
Voltage - Pumps
120V AC
GPM of Water @ 25 Ft. of Head
8
Impeller Material - Pumps
Cast Iron
Shaft Seal Material - Pumps
Carbon, Ceramic
Application
Dewatering
Body Material
Cast Iron
Flow Rate @ 15 Ft. of Head
58 gpm
Discharge
1 1/2 in FNPT
Discharge Standard
NPT
Duty Cycle
Continuous
Flow Rate @ 10 Ft. of Head
79 gpm
Rated Voltage
115V AC
RPM
1,725 RPM
Discharge Gender
Female
Switch Electrical Connection
Integral
Flow Rate @ 20 Ft. of Head
36 gpm
Flow Rate @ 5 Ft. of Head
90 gpm
Switch Actuation
Vertical Float
Standards
cCSAus
Operation
Automatic
Impeller Design
Vortex
For Media Type
Clear Water
Feet of Head - Maximum
26 ft
Flow Rate @ 30 ft of Head
0 gpm
Series
Model 137
Flow Rate @ 10 ft of Head
79 gpm
Motor Housing Material
Cast Iron
Horsepower
1/2 hp
Shaft Seal Material
Carbon/Ceramic
Installation
Submersible
Power Source
Corded Electric
Current
10.7 A
Controls Included
No Controls Included
Includes Alarm
No Alarm Included
Frequency
60 Hz
Hazardous Location Class
Not Rated
Volute Material
Cast Iron
For Industry
Residential
Shaft Seal Type
Single Mechanical
Liquid Temperature - Maximum
130 Degrees F
Requires Control Panel
No Control Panel Required
Rotation Speed - Maximum
1,725 RPM
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Amps 10.7 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 2 3/4, On Point 10 in, Body Material Cast Iron, Impeller Material Bronze/Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 90 gpm, Flow Rate @ 10 Ft. of Head 79 gpm, Flow Rate @ 15 Ft. of Head 58 gpm, Flow Rate @ 20 Ft. of Head 36 gpm, Max. Head 26 ft, Min. Sump Pit Dia. 18 in, Body Dia. 11 3/4 in
