Shop ZOELLER

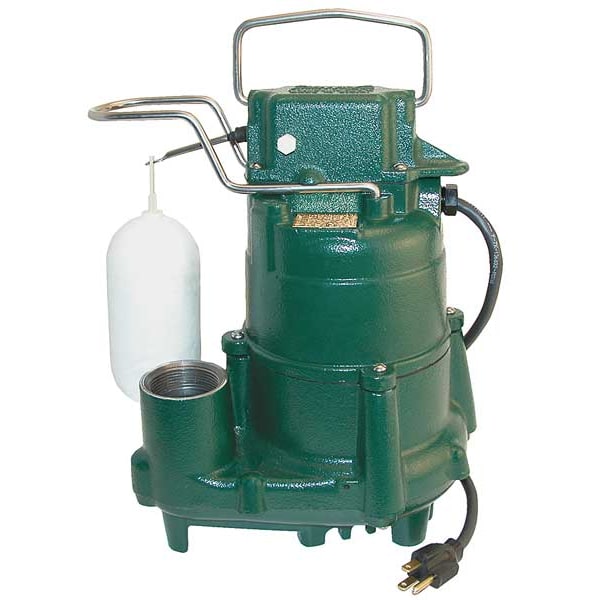

1/2 HP 1-1/2" F Submersible Sump Pump 230V Vertical

  • Mfr # 98-0003

  • Zoro # G3342403

product price:
$
464.99
/ea
Free Shipping & Returns

Key Features

Cord Length
15 ft
Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1/2
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
98-0003
Zoro #
G3342403
UPC #
053514263096
Country of Origin
United States

Dimensions

Cord Length
15 ft
Max. Dia. Solids
1/2"
Max. Diameter Solids
1/2 in
Height
12-1/16"
Diameter
10-1/8"
Manufacturers Warranty Length
3 yr
Cord Length - Pumps
15 ft.
Min. Sump Pit Dia.
18 in
Body Dia.
10 1/8 in
Discharge Dia.
1 1/2 in
Overall Height
12 1/8 in
Body Diameter
10 1/8 in
Width at Widest Point
10 1/8 in
Solids Diameter - Maximum
1/2 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1/2
Hz
60 Hz
Impeller Material
Plastic
Max. Head
23 ft
Max. Temp.
130 Degrees F
Motor RPM
1725
Motor Type
Permanent Split Capacitor
Shaft Seal
Carbon/Ceramic
Voltage
230V
Phase
Single
Alarm
No
Switch Type - Pumps
Vertical
GPM of Water @ 15 Ft. of Head
45
Voltage - Pumps
240VAC
Pump Body Material
Cast Iron
Max. Liquid Temp.
130 Degrees F
Alarm Included
No
Max. Head - Pumps
23 ft.
Duty
Continuous
GPM of Water @ 20 Ft. of Head
25
Thermal Protection
Auto
Mechanical Seal
CRB/CMC
Amps
4.7 A
Item - Sump Pumps
Submersible Sump Pump
Shaft Seal Material - Pumps
Carbon, Ceramic
GPM of Water @ 10 Ft. of Head
61
Gauge/Conductor
18/3
On Point
7 1/4 in
Item
Submersible Sump Pump
Base Material
Engineered Thermoplastic
Switch Type
Vertical
NEC Cord Designation
SJOW
GPM of Water @ 5 Ft. of Head
72
Bearing Type
Sleeve
Amps - Pumps
4.70
Off Point
3 in
Impeller Material - Pumps
Polypropylene
Application
Dewatering
Rated Voltage
230V AC
Flow Rate @ 5 Ft. of Head
72 gpm
Flow Rate @ 10 Ft. of Head
61 gpm
Switch Actuation
Vertical Float
Switch Electrical Connection
Integral
RPM
1,725 RPM
Body Material
Cast Iron
Discharge Standard
NPT
Flow Rate @ 20 Ft. of Head
25 gpm
Discharge
1 1/2 in FNPT
Duty Cycle
Intermittent
Flow Rate @ 15 Ft. of Head
45 gpm
Discharge Gender
Female
Volute Material
Cast Iron
Hazardous Location Class
Not Rated
Current
4.7 A
Rotation Speed - Maximum
1,725 RPM
Shaft Seal Material
Carbon/Ceramic
Requires Control Panel
No Control Panel Required
Frequency
60 Hz
Standards
CSA, SSPMA, UL Listed
Series
Model M98
Feet of Head - Maximum
23 ft
Operation
Automatic
Flow Rate @ 10 ft of Head
61 gpm
Impeller Design
Vortex
Power Source
Corded Electric
Includes Alarm
No Alarm Included
Flow Rate @ 30 ft of Head
0 gpm
Controls Included
No Controls Included
Installation
Submersible
Shaft Seal Type
Single Mechanical
For Industry
Residential
Motor Housing Material
Cast Iron
Liquid Temperature - Maximum
130 Degrees F
For Media Type
Clear Water
Horsepower
1/2 hp
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 230V AC, Hz 60 Hz, Amps 4.7 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 3 in, On Point 7 1/4 in, Body Material Cast Iron, Impeller Material Plastic, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 72 gpm, Flow Rate @ 10 Ft. of Head 61 gpm, Flow Rate @ 15 Ft. of Head 45 gpm, Flow Rate @ 20 Ft. of Head 25 gpm, Max. Head 23 ft, Min. Sump Pit Dia. 18 in, Body Dia. 10 1/8 in
