Shop ZOELLER

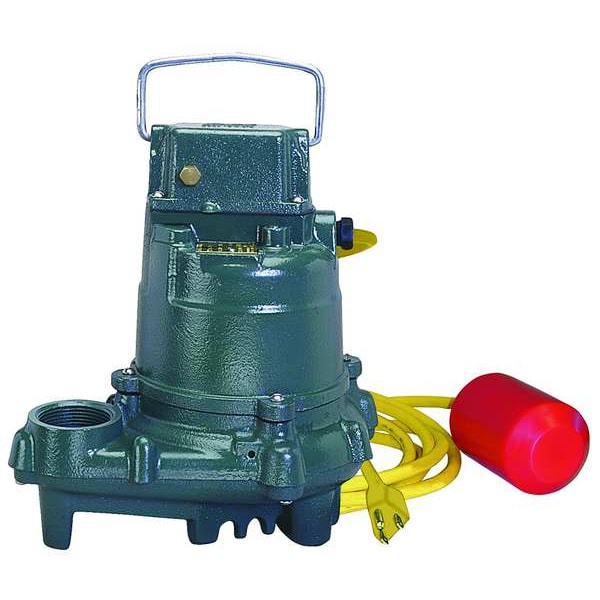

1/3 HP 1-1/2" - 3" Submersible Sump Pump 115 Tether

  • Mfr # 2057-0005
  • Zoro # G2317427
product price:
$
610.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/2" - 3"
Housing Material
Cast iron
HP
1/3
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2057-0005
Zoro #
G2317427
UPC #
053514263195
Country of Origin
United States

Dimensions

Cord Length
10 ft
Height
10-1/16"
Max. Diameter Solids
1/2 in
Diameter
10-3/32"
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/2"
Cord Length - Pumps
10 ft.
Min. Sump Pit Dia.
18 in
Overall Height
10 1/8 in
Body Dia.
10 3/32 in
Discharge Dia.
1 1/2 in
Solids Diameter - Maximum
1/2 in
Body Diameter
10 1/8 in
Sump Pit Diameter - Minimum
18 in
Width at Widest Point
10 1/8 in
Discharge Diameter
1 1/2 in

Details

Discharge NPT
1-1/2" - 3"
Housing Material
Cast iron
HP
1/3
Hz
60 Hz
Impeller Material
Cast Iron
Max. Head
18 ft
Max. Temp.
180 Degrees F
Motor RPM
1725
Motor Type
Thermally Protected
Voltage
115
Phase
Single
GPM of Water @ 15 Ft. of Head
17
Alarm Included
No
Pump HP
3/10
Voltage - Pumps
120VAC
Switch Type - Pumps
Tether
On Point
13 1/4 in
Bearing Type
Sleeve
Gauge/Conductor
16/3
Impeller Material - Pumps
Cast Iron
Item - Sump Pumps
Submersible Sump Pump
Base Material
Cast Iron
Switch Type
Tether
Item
Submersible Sump Pump
Thermal Protection
Auto
GPM of Water @ 5 Ft. of Head
39
Max. Head - Pumps
18 ft.
Off Point
4 1/4 in
Shaft Seal Material - Pumps
Carbon, Ni-Resist
Amps
9.7 A
NEC Cord Designation
SOW
Pump Body Material
Cast Iron
Mechanical Seal
CRB/CMC
Max. Liquid Temp.
200 Degrees F
GPM of Water @ 10 Ft. of Head
31
Amps - Pumps
9.70
Duty
Intermittent
RPM
1,550 RPM
Flow Rate @ 15 Ft. of Head
17.0 gpm
Discharge
1-1/2 in FNPT
Body Material
Cast Iron
Discharge Standard
NPT
Flow Rate @ 10 Ft. of Head
31 gpm
Switch Actuation
Tether Float
Flow Rate @ 5 Ft. of Head
39.0 gpm
Rated Voltage
115V AC
Switch Electrical Connection
Piggyback
Duty Cycle
Intermittent
Discharge Gender
Female
Operation
Automatic
Shaft Seal Material
Carbon/Ni-Resist
Motor Housing Material
Cast Iron
Volute Material
Cast Iron
For Media Type
Clear Water
Flow Rate @ 30 ft of Head
0 gpm
Frequency
60 Hz
Rotation Speed - Maximum
1,550 RPM
Series
Model 2057
Horsepower
1/3 hp
Power Source
Corded Electric
Controls Included
No Controls Included
Impeller Design
Vortex
For Industry
Commercial, Residential
Feet of Head - Maximum
18 ft
Current
9.7 A
Includes Alarm
No Alarm Included
Requires Control Panel
No Control Panel Required
Hazardous Location Class
Not Rated
Flow Rate @ 10 ft of Head
31 gpm
Shaft Seal Type
Single Mechanical
Standards
SSPMA
Installation
Submersible
Liquid Temperature - Maximum
200 Degrees F
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 1/3, Rated Voltage 115V AC, Hz 60 Hz, Amps 9.7 A, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 4 1/4 in, On Point 13 1/4 in, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ni-Resist, Flow Rate @ 5 Ft. of Head 39.0 gpm, Flow Rate @ 10 Ft. of Head 31 gpm, Flow Rate @ 15 Ft. of Head 17.0 gpm, Max. Head 18 ft, Min. Sump Pit Dia. 18 in, Body Dia. 10 3/32 in, Overall Height 10 1/8 in
