  9. 24" x 24" Sewage System, 1/2HP, Piggy-Back Switch, 115V

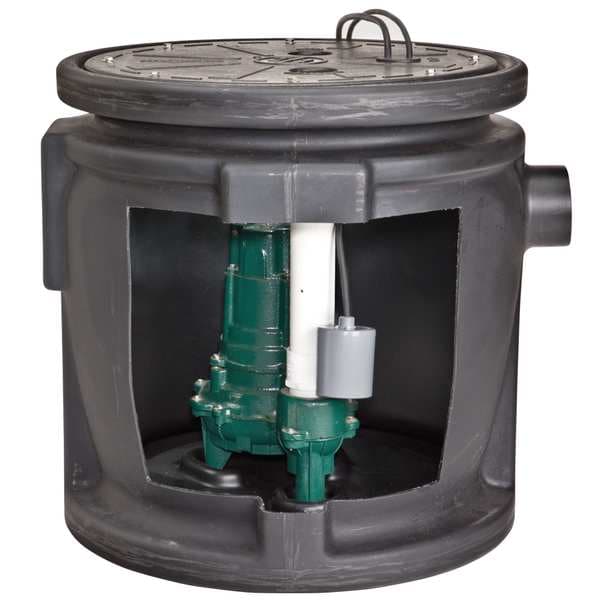

Zoeller 24" x 24" Sewage System, 1/2HP, Piggy-Back Switch, 115V 912-1117 - main

24" x 24" Sewage System, 1/2HP, Piggy-Back Switch, 115V

  • Mfr # 912-1117

  • Zoro # G3116294

product price: $1,167.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Outlet
2
Includes
Indoor High Water Alarm, Internal 2 in PVC Discharge Pipe
Switch Type - Pumps
Piggyback Float
Vent
2
Manufacturers Warranty Length
3 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
912-1117
Zoro #
G3116294
UPC #
053514290139
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr
Cord Length - Pumps
10 ft.
Max. Diameter Solids
2 in
Basin Height
24 in
Basin Dia.
24"
Cord Length
10 ft
Max. Dia. Solids
2"
Vent Size
2 in
Inlet Dia.
4 in
Pump Discharge Diameter
2 in
Basin Diameter
24 in
Solids Diameter - Maximum
2 in
For Vent Pipe Diameter
2 in
Inlet Diameter
4 in
Discharge Diameter
2 in

Details

Outlet
2
Includes
Indoor High Water Alarm, Internal 2 in PVC Discharge Pipe
Switch Type - Pumps
Piggyback Float
Vent
2
GPM of Water @ 5 Ft. of Head
128
Voltage
115V
Item
Sewage Ejector System
Basin Material
Polyethylene
Cover Material
Thermoplastic
Item - Sump/Sewage Pump Systems
Simplex Sewage System
Max. Liquid Temp.
130 Degrees F
HP
1/2
Discharge NPT
2" F
Amps - Pumps
10.40
GPM of Water @ 20 Ft. of Head
10
Pump HP
1/2
Phase
Single
Input Phase AC
1
Features
Fully Assembled with Thermal Overload Protection, Non-Clogging Vortex Impeller, Anti-Floatation Device Helps to Eliminate Basin From Floating
Hz
60 Hz
GPM of Water @ 10 Ft. of Head
89
GPM of Water @ 15 Ft. of Head
50
Voltage - Pumps
120VAC
Amps
10.4
Motor RPM
1725
Inlet
4 in FNPT
Basin Capacity
41 gal
Max. Head - Pumps
21 ft.
Max. Head
21 ft
Pump Body Material
Cast Iron
Application
Waste Removal
RPM
1,725 RPM
Inlet Gender
Female
Switch Actuation
Tether Float
Flow Rate @ 10 Ft. of Head
53 gpm
Rated Voltage
120V AC
Duty Cycle
Continuous
Flow Rate @ 15 Ft. of Head
32 gpm
Alarm Included
Yes
Phase - Pumps
1
Inlet Standard
NPT
Number of Pumps
1
Flow Rate @ 20 Ft. of Head
10 gpm
Flow Rate @ 5 Ft. of Head
128 gpm
Switch Electrical Connection
Piggyback
Alarm Application
Indoor
Series
Model 912
Feet of Head - Maximum
21 ft
Rotation Speed - Maximum
1,725 RPM
Discharge Location
Top
Pump Volute Material
Cast Iron
For Media Type
Sewage Water
Impeller Design
Vortex
Power Source
Corded Electric
Horsepower
1/2 hp
Pump Motor Housing Material
Cast Iron
Frequency
60 Hz
Installation
Submersible
Discharge Standard
NPT
Liquid Temperature - Maximum
130 Degrees F
Flow Rate @ 10 ft of Head
53 gpm
Includes Alarm
Alarm Included
Discharge Gender
Female

Description

Sewage Ejector System, HP 1/2, Number of Pumps 1, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Pump Body Material Cast Iron, Basin Material Polyethylene, Flow Rate @ 5 Ft. of Head 128 gpm, Flow Rate @ 10 Ft. of Head 53 gpm, Flow Rate @ 15 Ft. of Head 32 gpm, Flow Rate @ 20 Ft. of Head 10 gpm, Max. Diameter Solids 2 in, Cord Length 10 ft, Max. Liquid Temp. 130 Degrees F, Max. Head 21 ft, RPM 1,725 RPM
