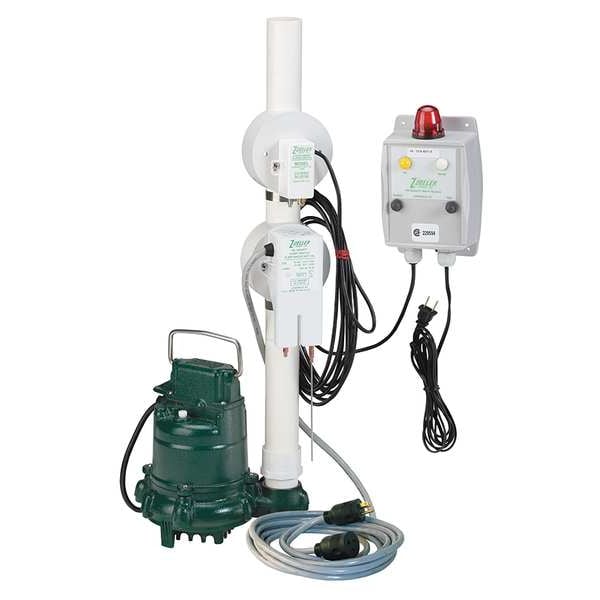

3/10 HP 1-1/2" Elevator Sump Pump 115V Piggyback

  • Mfr # 940-0005
  • Zoro # G1428192
product price:
$
3,125.99
/ea
Free Shipping & Returns

Key Features

Cord Length
15 ft
Discharge NPT
1-1/2"
Housing Material
Cast iron
HP
3/10
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
940-0005
Zoro #
G1428192
UPC #
053514264598
Country of Origin
United States

Dimensions

Cord Length
15 ft
Height
10-1/16"
Manufacturers Warranty Length
1 yr
Min. Sump Pit Dia.
18 in
Length
10-1/16"
Width
10-3/32"
Max. Dia. Solids
1/2"
Sensor Cord Length (Ft.)
20
Max. Diameter Solids
1/2 in
Cord Length - Pumps
15 ft.
Discharge Dia.
1 1/2 in
Overall Height
10 1/8 in
Width at Widest Point
10 1/8 in
Minimum Water Depth
14 in
Solids Diameter - Maximum
1/2 in
Discharge Diameter
1 1/2 in
Water Depth - Minimum
14 in
Sump Pit Depth - Minimum
18 in
Sump Pit Diameter - Minimum
18 in

Details

Discharge NPT
1-1/2"
Housing Material
Cast iron
HP
3/10
Hz
60 Hz
Impeller Material
Cast Iron
Includes
Alarm Panel and Pump Switch
Max. Head
19.2 ft
Motor RPM
1550
Motor Type
Shaded pole
Shaft Seal
Carbon Ceramic
Voltage
115V
Phase
1
Features
Sensors Have a Preset On/Off Range of 6" but Level of Where Sensors Go is Adjustable
On Point
10 1/8 in
Agency Compliance
CSA/UL
Pump Body Material
Cast Iron
Voltage - Pumps
120VAC
Pump HP
3/10
GPM of Water @ 5 Ft. of Head
43
Input Phase AC
1
Alarm Output - Pumps
Audible, Dry Contact Remote Terminal, Visual
Alarm Duration - Pumps
Continuous
Base Material
Cast Iron
Alarm
Audio 71 db Visual
Application
Elevator Sumps, Transformer Vaults and Commercial Applications
Handle
yes
Item - Sump Pumps
Elevator Sump Pump with Oil Sensor
GPM of Water @ 10 Ft. of Head
34
Bearing Type
Sleeve
Housing
Cast Iron
Alarm Output
Audible, Dry Contact Remote Terminal, Visual
Check Valve
Not included
Amps
9.7 A
Shaft Seal Material - Pumps
Carbon, Ceramic
Switch Type
Piggyback
Off Point
16-1/16 in
Alarm Included
Yes
Max. Liquid Temp.
130 Degrees F
Item
Elevator Sump Pump
Duty
Continuous
Thermal Protection
Yes
Max. Head - Pumps
19 ft.
GPM of Water @ 15 Ft. of Head
19
Switch Type - Pumps
Piggyback Float
Alarm Duration
Continuous
Amps - Pumps
9.70
Impeller Material - Pumps
Cast Iron
Pump RPM
1550
RPM
1,550 RPM
Duty Cycle
Continuous
Discharge Standard
NPT
Switch Actuation
Oil Probe Sensor
Switch Electrical Connection
Piggyback
Discharge
1-1/2 in FNPT
Flow Rate @ 10 Ft. of Head
34 gpm
Discharge Gender
Female
Body Material
Cast Iron
Rated Voltage
115V AC
Flow Rate @ 10 ft of Head
34 gpm
Volute Material
Cast Iron
For Media Type
Clear Water, Hydraulic Oil
Includes Alarm
Alarm Included
Liquid Temperature - Maximum
130 Degrees F
Horsepower
3/10 hp
Rotation Speed - Maximum
1,550 RPM
Shaft Seal Material
Carbon/Ceramic
Current
9.7 A
Feet of Head - Maximum
19.2 ft
Frequency
60 Hz
Power Source
Corded Electric
Standards
CSA/UL
Motor Housing Material
Cast Iron
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Elevator Sump Pump, HP 3/10, Rated Voltage 115V AC, Hz 60, Amps 9.7 A, Flow Rate @ 10 Ft. of Head 34 gpm, Max. Head 19.2 ft, Switch Actuation Oil Probe Sensor, Switch Electrical Connection Piggyback, Off Point 16-1/16 in, On Point 10 1/8 in, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Min. Sump Pit Dia. 18 in, Minimum Water Depth 14 in, Width at Widest Point 10 1/8 in, Overall Height 10 1/8 in, Cord Length 15 ft, Discharge 1-1/2 in FNPT
