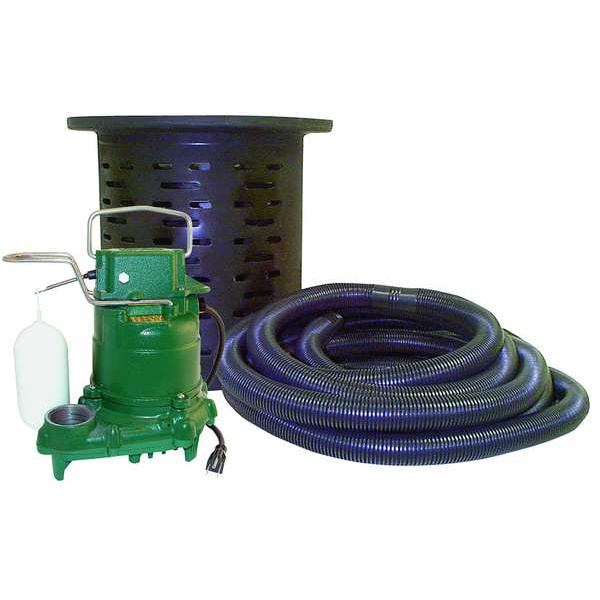

Zoeller Crawl Space System, 3/10 HP, 115 V, 9.7 A 108-0001 - main

Crawl Space System, 3/10 HP, 115 V, 9.7 A

  • Mfr # 108-0001

  • Zoro # G0969071

product price: $455.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast iron
Voltage
115
HP
3/10
Phase
Single
Outlet
1-1/2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
108-0001
Zoro #
G0969071
UPC #
053514263133
Country of Origin
United States

Dimensions

Basin Height
10 7/8 in
Cord Length
25 ft
Cord Length - Pumps
25 ft.
Manufacturers Warranty Length
3 yr
Basin Dia.
12 3/16 in
Inlet Dia.
1/2 in
Max. Diameter Solids
1/2 in
Discharge Dia.
1 1/2 in
Discharge Diameter
1 1/2 in
Basin Diameter
12 3/16 in
Solids Diameter - Maximum
1/2 in
For Vent Pipe Diameter
1 1/2 in
Inlet Diameter
1/2 in

Details

Housing Material
Cast iron
Voltage
115
HP
3/10
Phase
Single
Outlet
1-1/2"
Inlet
1/2 in
Switch Type
Vertical
Basin Capacity
9.7 gal
Shaft Seal
Carbon/Ceramic
Basin Material
Polyethylene
Item
Sump Pump System
Discharge NPT
1-1/2" F
GPM of Water @ 10 Ft. of Head
34
Amps - Pumps
9.70
GPM of Water @ 5 Ft. of Head
43
Max. Liquid Temp.
130 Degrees F
Item - Sump/Sewage Pump Systems
Sump Pump System
Switch Type - Pumps
Vertical
Pump Body Material
Cast Iron
GPM of Water @ 15 Ft. of Head
19
Amps
9.7
Pump HP
3/10
Voltage - Pumps
120VAC
Max. Head
19.2 ft
Impeller Material
Polypropylene
Max. Head - Pumps
19 ft.
Includes
24 ft Discharge Hose, 24 ft of 1-1/2 in Corrugated Hose, Cord Grommet, Hardware, Perforated Basin With Cover, Submersible Pump
Impeller Material - Pumps
Polypropylene
Discharge Standard
NPT
Switch Electrical Connection
Integral
Discharge
1 1/2 in FNPT
Duty Cycle
Intermittent
Flow Rate @ 15 Ft. of Head
19.0 gpm
Discharge Gender
Female
Flow Rate @ 10 Ft. of Head
34.0 gpm
Rated Voltage
120V AC
Switch Actuation
Vertical Float
Alarm Included
No
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 5 Ft. of Head
43.0 gpm
Application
Dewatering
Horsepower
1/3 hp
Inlet Standard
NPT
Shaft Seal Material
Carbon/Ceramic
Discharge Location
Top
Pump Motor Housing Material
Cast Iron
Basin Perforation
Perforated
Power Source
Corded Electric
Feet of Head - Maximum
19.2 ft
Series
Model 108
Installation
Submersible
Includes Alarm
No Alarm Included
Assembly
Fully Assembled
Pump Volute Material
Cast Iron
Inlet Gender
Female
Flow Rate @ 10 ft of Head
34 gpm
Liquid Temperature - Maximum
130 Degrees F
For Media Type
Clear Water

Description

Sump Pump System, HP 3/10, Rated Voltage 120V AC, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Pump Body Material Cast Iron, Impeller Material Polypropylene, Shaft Seal Material - Pumps Carbon, Ceramic, Basin Material Polyethylene, Flow Rate @ 5 Ft. of Head 43.0 gpm, Flow Rate @ 10 Ft. of Head 34.0 gpm, Flow Rate @ 15 Ft. of Head 19.0 gpm, Max. Head 19.2 ft, Basin Dia. 12 3/16 in, Basin Capacity 9.7 gal, Basin Height 10 7/8 in, Discharge 1 1/2 in FNPT
