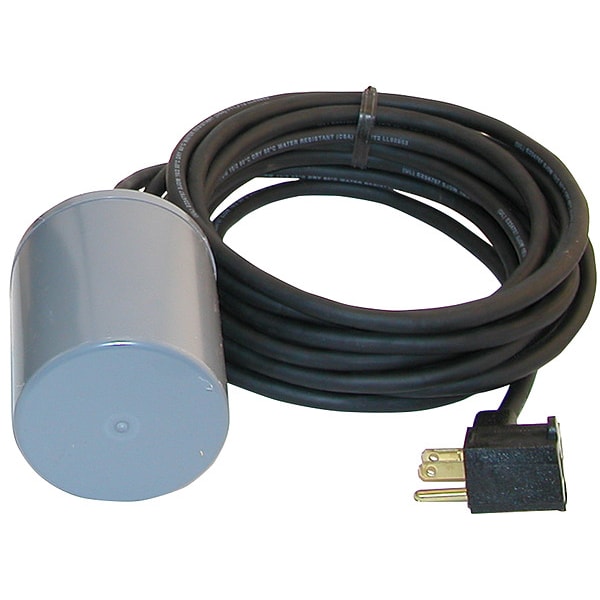

Zoeller FloatSwitch, 15ft, 115VAC 10-0032 - main

FloatSwitch, 15ft, 115VAC

  • Mfr # 10-0032

  • Zoro # G500489425

product price: $107.99
/ea
Free Shipping & Returns

Key Features

Switch Type
Tether Float
Amps
15 A
Agency Compliance
CSA
Contact Default
Normally Open
Standards
CSA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10-0032
Zoro #
G500489425
UPC #
53514479428
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
2 yr
Float Dia.
6 1/2 in
Cord Length
15 ft
Float Length
18 in
Tether Length - Maximum
15 in
Tether Length - Minimum
3 in
Float Diameter
6 1/2 in

Details

Switch Type
Tether Float
Item
Float Switch
Amps
15 A
Agency Compliance
CSA
Contact Default
Normally Open
Standards
CSA
Series
Zoeller 50, 90, 130, 260
Off Point
Adjustable
On Point
Adjustable
Includes
Mounting Clamp
For Use With
Combination Starter on 3 Ph Pumps
Max. Liquid Temp.
140 Degrees F
Switch Actuation
Tethered Mechanical Float Switch
Float Material
PVC/Polypropylene
Contact Form
Normally Open
Electrical Connection
Piggy-Back Plug
Mounting Bracket Material
Stainless Steel
Rated Voltage
115V AC
NEC Cord Designation
SJOW
Actuation Method
Mechanically-Activated
Liquid Temperature - Maximum
140 Degrees F
Compatible Pump Type
Dewatering Pump, Grinder Pump, Sewage Pump, Sump Pump
Electric Load Current - Maximum
15 A @ 110V AC
Counterweight Type
No Counterweight
Running Current - Maximum
15 A
Compatible Manufacturer Part Number
137-0002, 140-0002, 264-0002, 267-0002, 282-0002, 53-0002, 98-0002
Number of Floats
1
Intrinsic Safety
Not Specified Intrinsically Safe
Compatible Pump Horsepower Controlled - Maximum
1/2 hp @ 110V AC
Switch Duty
Pump Duty

Description

Float Switch

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
