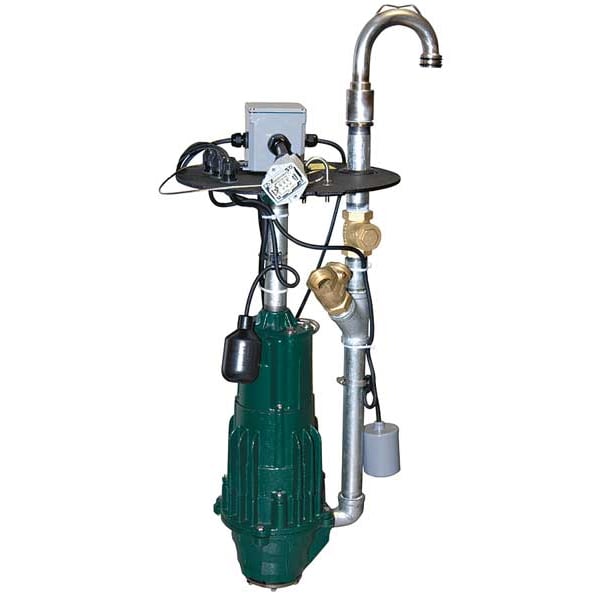

Zoeller Grinder System, Simplex, 1 HP, 230V 932-0011 - main

Grinder System, Simplex, 1 HP, 230V

  • Mfr # 932-0011

  • Zoro # G1338495

product price: $4,707.99
/ea
Item requires special delivery charges. A $135.00 per item surcharge will be applied.

Key Features

HP
1 hp
Phase - Pumps
1
Switch Actuation
No Switch Included
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
15.2 gpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
932-0011
Zoro #
G1338495
UPC #
053514254742
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
18"
Height
22-3/8"
Manufacturers Warranty Length
1 yr
Cord Length - Pumps
20 ft.
Length
8-3/8"
Cord Length
20 ft
Diameter
8-3/8"
Vent Size
2 in
Discharge Diameter
1 1/4 in

Details

HP
1 hp
Phase - Pumps
1
Switch Actuation
No Switch Included
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
15.2 gpm
Max. Head
150 ft
Impeller Material
Stainless Steel
Hz
60
GPM of Water @ 40 Ft. of Head
13.8
GPM of Water @ 90 Ft. of Head
11.6
Agency Compliance
UL & cCSAus
Pump RPM
1725
Bearing Type
Ball
GPM of Water @ 55 Ft. of Head
44
Shaft Seal
Carbon/Ceramic
Impeller Material - Pumps
Bronze
Amps
6 A
Item
Grinder Pump System
GPM of Water @ 110 Ft. of Head
10.5
GPM of Water @ 10 Ft. of Head
15.2
GPM of Water @ 60 Ft. of Head
13
GPM of Water @ 5 Ft. of Head
15.5
Input Phase AC
1
GPM of Water @ 25 Ft. of Head
14.5
Thermal Protection
Auto Reset
GPM of Water @ 20 Ft. of Head
15
GPM of Water @ 35 Ft. of Head
14
GPM of Water @ 100 Ft. of Head
11
GPM of Water @ 80 Ft. of Head
12
Discharge NPT
1-1/4" F
Includes
All Necessary Components to Replace Positive Displacement Grinders
Phase
Single
Shaft Seal Material - Pumps
Carbon, Ceramic
Motor RPM
1725
Max. Head - Pumps
140 ft.
GPM of Water @ 120 Ft. of Head
10
Item - Grinder Pumps
Grinder Pump
GPM of Water @ 30 Ft. of Head
14
GPM of Water @ 140 Ft. of Head
9
GPM of Water @ 130 Ft. of Head
9.5
GPM of Water @ 15 Ft. of Head
14.8
Handle
Yes
Switch Type
No Switch Included
GPM of Water @ 50 Ft. of Head
13.2
Voltage
230
GPM of Water @ 45 Ft. of Head
46
Motor Type
CPCR
Pump Body Material
Cast Iron
Max. Liquid Temp.
130 Degrees F
Voltage - Pumps
240VAC
Duty
Intermittent
Switch Type - Pumps
No Switch Included
GPM of Water @ 70 Ft. of Head
12.3
Number of Pumps
1
Rated Voltage
230V AC
Flow Rate @ 5 Ft. of Head
15.5 gpm
Flow Rate @ 20 Ft. of Head
15 gpm
Switch Electrical Connection
No Switch Included
Duty Cycle
Intermittent
Flow Rate @ 30 Ft. of Head
14 gpm
Flow Rate @ 15 Ft. of Head
14.8 gpm
RPM
1,725 RPM
Discharge Standard
NPT
Liquid Temperature - Maximum
130 Degrees F
Standards
UL & cCSAus
For Media Type
Sewage Water
Rotation Speed - Maximum
1,725 RPM
Horsepower
1 hp
Current
6 A
Shaft Seal Material
Carbon/Ceramic
Power Source
Corded Electric
Discharge Gender
Female
Flow Rate @ 10 ft of Head
15.2 gpm
Compatible Drop-In Replacement Brand
Zoeller
Frequency
60 Hz
Compatible Drop-In Replacement Series
Model 810
Feet of Head - Maximum
150 ft

Description

Replacement Grinder System, Simplex, 1 HP, Voltage 230, Amps 6, Discharge NPT (In.) 1 1/4, Shaft Seal Carbon Ceramic, Max. Head 140 Ft., Max. Temp. 130 F, Phase 1, 1725 RPM, Height 22 3/8 In., Width 8 3/8 In., Cord Length 20 Ft., Includes All Necessary Components to Replace Positive Displacement Grinders
