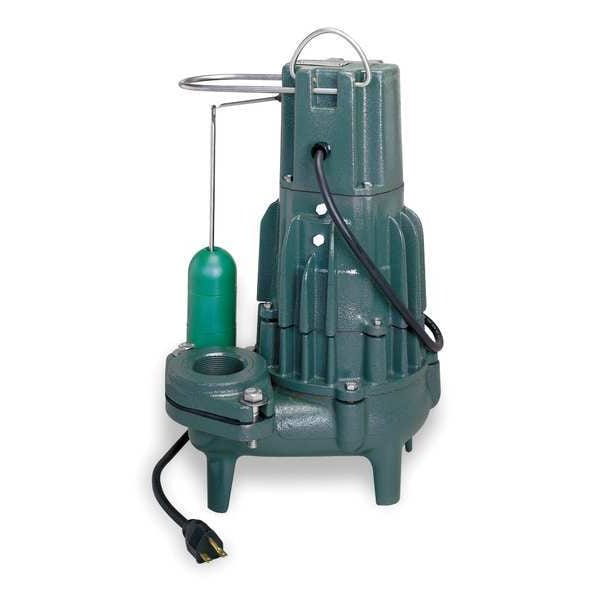

Waste-Mate 1 HP 2" Auto Submersible Sewage Pump 230V Vertical

  • Mfr # 293-0003

  • Zoro # G1917151

product price:
$
1,606.99
/ea
Free Shipping & Returns

Key Features

HP
1
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
293-0003
Zoro #
G1917151
UPC #
053514036157
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Diameter
12-7/8"
Height
19-5/16"
Cord Length - Pumps
20 ft.
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
2"
Cord Length
20 ft
Min. Sump Pit Dia.
24 in
Overall Height
19 3/8 in
Discharge Dia.
2 in
Body Dia.
12 7/8 in
Body Diameter
12 7/8 in
Sump Pit Diameter - Minimum
24 in
Width at Widest Point
12 7/8 in
Discharge Diameter
2 in
Solids Diameter - Maximum
2 in

Details

HP
1
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Cast Iron
Max. Head
51 ft
Impeller Material
Cast Iron
Amps - Pumps
10.20
Pump Body Material
Cast Iron
Item - Sewage Pumps
Submersible Sewage Pump
Shaft Seal Material - Pumps
Carbon, Ceramic
Voltage
230
Motor RPM
3450
Motor Type
Hermetically-Sealed, Oil-Filled
GPM of Water @ 40 Ft. of Head
50
GPM of Water @ 30 Ft. of Head
90
Phase
Single
Housing Material
Cast iron
Agency Compliance
CSA Certified, UL Listed
Bearing Type
Ball
Input Phase AC
1
Item
Sewage Ejector Pump
GPM of Water @ 25 Ft. of Head
106
Shaft Seal
Carbon/Ceramic
GPM of Water @ 20 Ft. of Head
119
Max. Head - Pumps
50 ft.
GPM of Water @ 15 Ft. of Head
130
Switch Type
Vertical
Impeller Material - Pumps
Cast Iron
Amps
10.20 A
Switch Type - Pumps
Vertical
Discharge NPT
2"
Thermal Protection
Yes
Voltage - Pumps
240VAC
Max. Liquid Temp.
104 Degrees F
Pump Type
Automatic
On Point
14 3/4 in
Discharge Standard
NPT
Off Point
5 in
Discharge
2 in FNPT
RPM
3,450 RPM
Duty Cycle
Continuous
Flow Rate @ 15 Ft. of Head
122 gpm
Switch Electrical Connection
Integral
Flow Rate @ 40 Ft. of Head
51 gpm
Discharge Gender
Female
Rated Voltage
230V AC
Flow Rate @ 20 Ft. of Head
111 gpm
Standards
CSA Certified, UL Listed
Type
Automatic
Power Source
Corded Electric
For Media Type
Sewage Water
Motor Housing Material
Cast Iron
Requires Control Panel
No Control Panel Required
Current
10.20 A
Flow Rate @ 10 ft of Head
122 gpm
Shaft Seal Material
Carbon/Ceramic
Frequency
60 Hz
Shaft Seal Type
Single Mechanical
Rotation Speed - Maximum
3,450 RPM
Discharge Orientation
Vertical
Volute Material
Cast Iron
Liquid Temperature - Maximum
104 Degrees F
Feet of Head - Maximum
51 ft
Horsepower
1 hp
Hazardous Location Class
Not Rated
Series
Model 293
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector Pump, HP 1, Rated Voltage 230V AC, Phase - Pumps 1, Amps 10.20 A, Motor Type Hermetically-Sealed, Oil-Filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Vertical Float, Switch Electrical Connection Integral, On Point 14 3/4 in, Off Point 5 in, Flow Rate @ 15 Ft. of Head 122 gpm, Flow Rate @ 20 Ft. of Head 111 gpm, Flow Rate @ 40 Ft. of Head 51 gpm, Max. Diameter Solids 2 in, Min. Sump Pit Dia. 24 in
