  9. Waste-Mate 1 HP 3" Auto Submersible Sewage Pump 230V Vertical

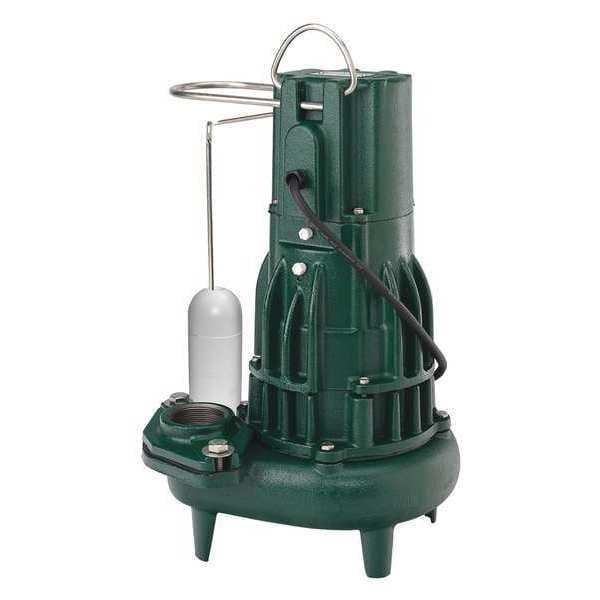

Zoeller Waste-Mate 1 HP 3" Auto Submersible Sewage Pump 230V Vertical 284-0003 - main

Waste-Mate 1 HP 3" Auto Submersible Sewage Pump 230V Vertical

  • Mfr # 284-0003

  • Zoro # G1773107

product price: $1,401.99
/ea
Free Shipping & Returns

Key Features

HP
1
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
284-0003
Zoro #
G1773107
UPC #
053514022730
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Manufacturers Warranty Length
1 yr
Diameter
13-9/16"
Cord Length
10 ft
Max. Dia. Solids
2"
Cord Length - Pumps
10 ft.
Height
19-9/16
Min. Sump Pit Dia.
18 in
Discharge Dia.
3 in
Body Dia.
13 9/16 in
Overall Height
19 5/8 in
Width at Widest Point
13 5/8 in
Body Diameter
13 5/8 in
Solids Diameter - Maximum
2 in
Discharge Diameter
2 in
Sump Pit Diameter - Minimum
18 in

Details

HP
1
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
157 gpm
Max. Head
35 ft
Impeller Material
Cast Iron
Item - Sewage Pumps
Submersible Sewage Pump
Shaft Seal Material - Pumps
Carbon, Ceramic
Switch Type - Pumps
Vertical
Agency Compliance
CSA Certified, UL Listed
Discharge NPT
3"
GPM of Water @ 10 Ft. of Head
157
Pump Type
Automatic
GPM of Water @ 25 Ft. of Head
72
Voltage - Pumps
240VAC
Thermal Protection
Yes
Switch Type
Vertical
Max. Liquid Temp.
140 Degrees F
Bearing Type
Upper Sleeve/Lower Ball
GPM of Water @ 30 Ft. of Head
42
Motor Type
Hermetically-Sealed, Oil-Filled
GPM of Water @ 5 Ft. of Head
179
Phase
Single
Impeller Material - Pumps
Cast Iron
Shaft Seal
Carbon/Ceramic
Amps
8.90 A
Amps - Pumps
8.90
Pump Body Material
Cast Iron
Max. Head - Pumps
35 ft.
Item
Sewage Ejector Pump
GPM of Water @ 15 Ft. of Head
133
GPM of Water @ 20 Ft. of Head
106
Voltage
230
Housing Material
Cast iron
Input Phase AC
1
Motor RPM
1725
Flow Rate @ 15 Ft. of Head
133 gpm
RPM
1,725 RPM
Discharge Standard
NPT
Discharge Gender
Female
Off Point
5 1/4 in
Rated Voltage
230V AC
Duty Cycle
Continuous
Switch Electrical Connection
Integral
Flow Rate @ 20 Ft. of Head
106 gpm
On Point
15 1/4 in
Discharge
3 in FNPT
Standards
CSA Certified, UL Listed
Type
Automatic
Frequency
60 Hz
Feet of Head - Maximum
35 ft
Motor Housing Material
Cast Iron
Volute Material
Cast Iron
Horsepower
1 hp
For Media Type
Sewage Water
Current
8.90 A
Rotation Speed - Maximum
1,725 RPM
Flow Rate @ 10 ft of Head
157 gpm
Liquid Temperature - Maximum
140 Degrees F
Shaft Seal Material
Carbon/Ceramic
Power Source
Corded Electric

Description

Sewage Ejector Pump, HP 1, Rated Voltage 230V AC, Phase - Pumps 1, Amps 8.90 A, Motor Type Hermetically-Sealed, Oil-Filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Vertical Float, Switch Electrical Connection Integral, On Point 15 1/4 in, Off Point 5 1/4 in, Flow Rate @ 10 Ft. of Head 157 gpm, Flow Rate @ 15 Ft. of Head 133 gpm, Flow Rate @ 20 Ft. of Head 106 gpm, Max. Diameter Solids 2 in, Min. Sump Pit Dia. 18 in
