  6. 1" Socket Kynar Ball Check Valve

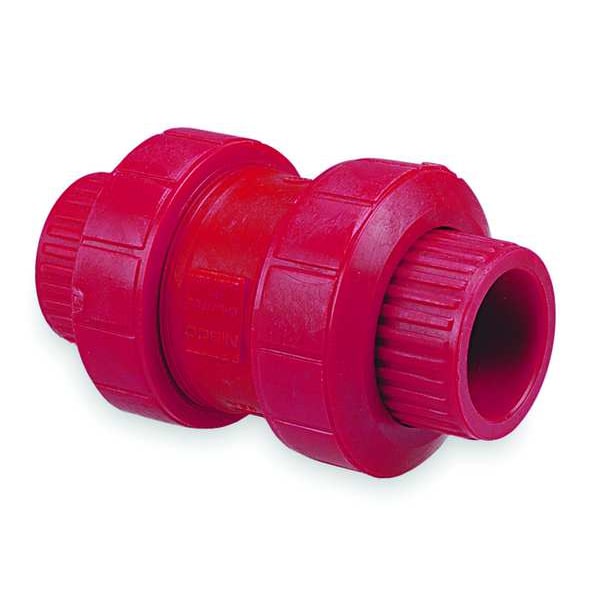

Zoro Select 1" Socket Kynar Ball Check Valve S65BC-V 1 - main

1" Socket Kynar Ball Check Valve

  • Mfr # S65BC-V 1

  • Zoro # G2629541

product price:  $579.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Hex Size
1 in
Connection Type
socket
Connection
Slip Socket
Valve Design
Ball Valve
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S65BC-V 1
Zoro #
G2629541
UPC #
039923754097
Country of Origin
United States

Dimensions

Pipe Size
1"
Hex Size
1 in
Length
5.40"
Size
1"
Pipe Size - Pipe Fitting
1 in
Width
2.83"
Pipe Size (Fittings)
1"
Overall Length
7.99 in
Overall Height
2 53/64 in
Pipe or Tube Size
1 in
Connection Size - Side 1
1 in
Nominal Valve Size
1 in
Connection Size - Side 2
1 in
Height - Cap to Inlet Center
3 1/8 in

Details

Connection Type
socket
Connection
Slip Socket
Valve Design
Ball Valve
Body Material
Red Kynar(R) Polyvinylidene Fluoride
Pipe Fitting Schedule/Class
Schedule 80
Basic Pipe Fitting Material
Plastic
Pipe Fitting Connection Type
Slip Socket
Fitting Connection Type
Slip Socket
Specific Pipe Fitting Shape
Ball Valve
Fitting Schedule/Class
Schedule 80
Material of Construction
Red Kynar(R) Polyvinylidene Fluoride
Temp. Range
73 Degrees to 280 Degrees F
Max. Pressure
150 psi @ 73 Degrees F
Item
Ball Check Valve
Standards
ASTM D3222
Color
Red
Pipe Fitting Material
Kynar(R)
Max. Thread Pressure
150 psi
Max. Socket Pressure
150 psi
Specific Fitting Shape
Ball Valve
Cap to Inlet Center
3 3/25 in
Max. Water Pressure - Valves
150 psi @ 73 Degrees F
Flow - Valves
19 gpm
Seat Material
FKM
Body Material - Valves
Kynar(R)
Seal Material
FKM
Flow
19 gpm
Max. Temp. - Valves
180 Degrees F
Cracking Pressure
1.73 psi
Item - Check Valves
Check Valve
Flow Design
Single
Mounting Orientation
Horizontal, Vertical
Full Flow - Valves
No
Mechanism and Body Design
Inline Ball
Min. Temp. - Valves
-30 Degrees F
Application - Valves
General Purpose
Max. Pressure (PSI)
1360
Type
Schedule 80
3-A Standard Compliance
Not Rated
Manufacturer Warranty
1 yr
Connection Type - Side 2
Socket
Valve Ways
2-Way
Connection Gender - Side 2
Female
Operating Temperature - Maximum
280 Degrees F
Maximum Pressure - Operating
150 psi
For Media
Water
Maximum Pressure - Steam
Not Rated
Valve Body Style
Inline
Operating Temperature - Minimum
-30 Degrees F
Connection Gender - Side 1
Female
Vacuum Service Rating
Not Rated
Check Mechanism Material
PVDF
Includes Counterweight
No Counterweight
Silent Check
Standard
Check Mechanism
Ball
Connection Type - Side 1
Socket
Valve Series
Model C

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Ball, Body Material - Valves Kynar(R), Pipe or Tube Size 1 in, Connection Type Slip Socket, Cracking Pressure 1.734 psi, Mounting Orientation Horizontal, Vertical, Seal Material FKM, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves -30 Degrees F, Max. Water Pressure - Valves 150 psi @ 73 Degrees F, Seat Material FKM, Flow - Valves 19 gpm, Full Flow - Valves No, Application - Valves General Purpose
