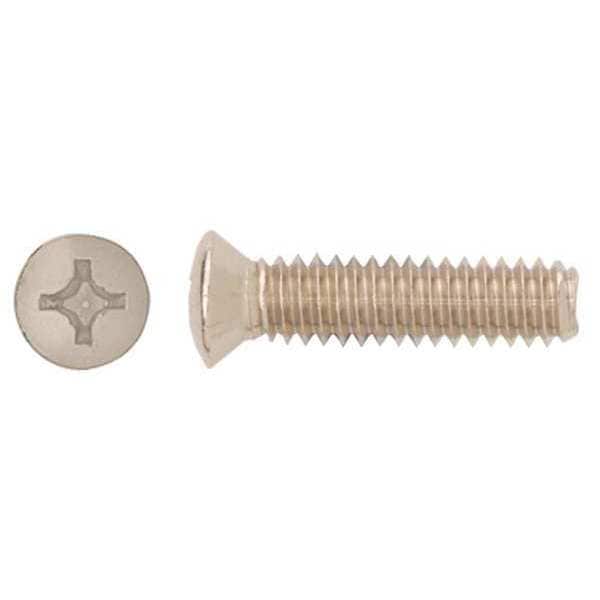

1/4"-20 x 13/16 in Phillips Oval Machine Screw, Plain Stainless Steel, 25 PK
Mfr # 9543PK
Zoro # G5108047
CAD Available
product price: $9.89
/pk 25, $0.40/eaKey Features
Oval Head
Phillips Drive
CAD Drawing
System of Measurement
Inch
Thread Size
1/4"-20
Fastener Length
13/16 in
Drive Size
#10
Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9543PK
Zoro #
G5108047
UPC #
841213009561
Country of Origin
Taiwan, Province of China
Dimensions
Thread Size
1/4"-20
Fastener Length
13/16 in
Drive Size
#10
Head Dia.
0.4375 in
Head Height
0.188 in
Hole Size
1/4 in
Recommended Hole Size
1/4 in
Screw Size
1/4 in
Maximum Head Height
3/16 in
Head Width
0.438 in
Overall Length
1 in
Maximum Head Width
7/16 in
Description
Machine Screw, Head Type Oval, Material Stainless Steel, Finish Plain, Drive Phillips, Thread Size 1/4 In.-20, Fastener Length 13/16 in, Head Width 0.438 in, Head Height 0.188 in, Drive Size #10, Tensile Strength Not Applicable, Dimensional Standards Not Applicable, Pack Size Small, Minimum Thread Length Not Applicable, Type Machine Screw, Washer Outside Diameter Not Applicable, Washer Thickness Not Applicable, Maximum Head Width 7/16 in, Minimum Head Width Not Applicable
