15pc. HSS 135 Degrees Drill Bit Set
Mfr # 5UDP6
Zoro # G1711166
product price:
$
100.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5UDP6
- Zoro #
- G1711166
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Drill Bit Dimension Type
- Fractional Inch
- Sizes Included
- 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
- Drill Bit Size
- 1/16 in to 1/2 in by 32nds
- Depth x Dia. Ratio
- 4xD
- Depth:Dia. Ratio
- 4xD
- Drill Bit Sizes Included
- 1/16 in, 3/32 in, 1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 9/32 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in, 1/2 in
- Smallest Drill Bit Size
- 1/16 in
- Largest Drill Bit Size
- 1/2 in
- Drill Length Class
- Mechanics-Length
Description

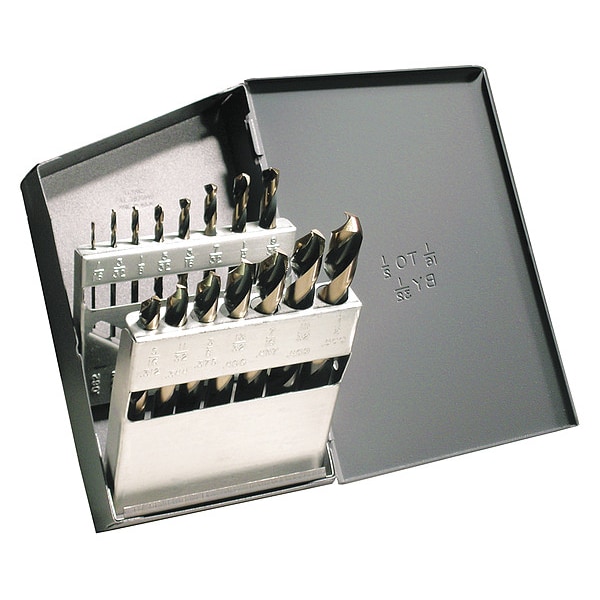

The ZORO SELECT - 5UDP6 is a mechanics-length drill bit set consisting of 15 high speed steel bits with sizes ranging from 1/16 inch to 1/2 inch, measured in fractional inches. These drill bits feature a split point design with a 135-degree point angle and a spiral flute with helix angles between 21 and 34 degrees. The bits have a straight shank with three flats and are intended for use with materials appropriate for HSS drill bits. This set is packaged with a metal drill index for storage.
Key Features:
- Contains 15 drill bits sized from 1/16" to 1/2" in 32nds increments.
- The bits are made of high speed steel (HSS).
- Mechanics-length design with a depth-to-diameter ratio of 4xD.
- Split point tips with a 135-degree point angle.
- Spiral flutes with 2 flutes per bit and a helix angle range of 21° to 34°.
- Straight shank with three flats.
- Finished in black and gold.
- Non-coolant through design; use externally applied coolant as appropriate for the drilling application.
- Packaged with a metal drill index for storage.
