  5. 16x20x4 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron
Zoro Select 16x20x4 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron 786EK7 - main
Shop ZORO SELECT

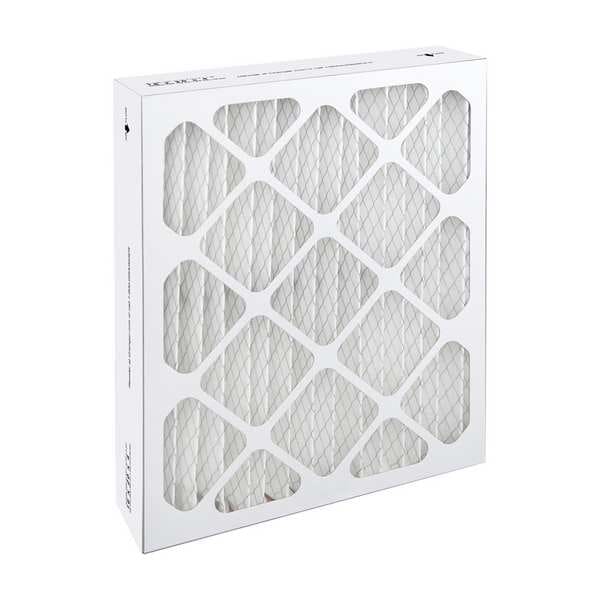

16x20x4 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron

  • Mfr # 786EK7

  • Zoro # G805735616

product price:  $10.49
/ea
Sold in multiples of 6 for $62.94

Key Features

Performance Rating
MERV 13
Air Filter Capacity
High Capacity
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments
Air Flow @ 300 fpm
667 cfm
Frame or Header Material
Beverage Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
786EK7
Zoro #
G805735616
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nominal Filter Size
16x20x4
Actual Filter Size
15-1/2 in x 19-1/2 in x 3-3/4 in
Nominal Height
20 in
Nominal Width
16 in
Nominal Depth
4 in
Actual Height
15-1/2 in
Actual Depth
3-3/4 in
Actual Width
19-1/2 in

Details

Performance Rating
MERV 13
Air Filter Capacity
High Capacity
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments
Air Flow @ 300 fpm
667 cfm
Frame or Header Material
Beverage Board
Media Material
Synthetic
Item
Pleated Air Filter
Air Filter Item
Pleated Air Filter
Media Color
White
Removes Particles Down To
1.0 to 3.0 micron
For Use With (Systems)
HVAC Systems
Max. Velocity
500 fpm
Style - Air Filters
Panel
Filter Efficiency - Air Filters
85%
Final Recommended Resistance
1 in wc
Common Applications
LEED/Green
Filter Frame Color
White
Air Flow @ 500 fpm
1,111 cfm
Standards
UL 900
Initial Resistance @ 300 fpm
0.22 in wc
Media Area
12.5 sq ft
Initial Resistance @ 500 fpm
0.37 in wc
Pleats per Linear Foot
12
Max. Temp.
180 Degrees F

Description

Pleated Air Filter, Style - Air Filters Panel, Performance Rating MERV 13, Nominal Filter Size 16x20x4, Filter Efficiency - Air Filters 85 Percent, Air Filter Capacity High Capacity, Media Material Synthetic, Frame or Header Material Beverage Board, Common Applications LEED/Green, For Use With (Systems) HVAC Systems, Media Color White, Media Area 12.5 sq ft, Pleats per Linear Foot 12

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
