  5. 16x24x2 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron
Zoro Select 16x24x2 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron 786EL0 - main
Shop ZORO SELECT

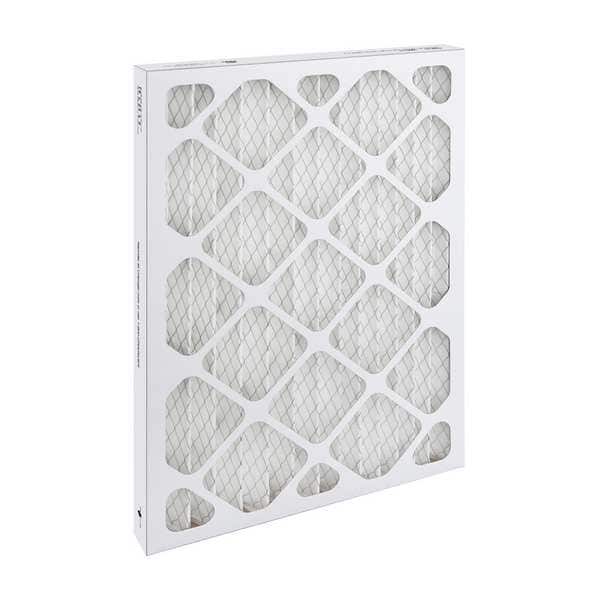

16x24x2 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron

  • Mfr # 786EL0

  • Zoro # G505261859

product price:  $8.65
/ea
Sold in multiples of 12 for $103.80

Key Features

Performance Rating
MERV 13
Air Filter Capacity
High Capacity
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments
Air Flow @ 300 fpm
800 cfm
Frame or Header Material
Beverage Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
786EL0
Zoro #
G505261859
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nominal Filter Size
16x24x2
Actual Filter Size
15-3/8 in x 23-3/8 in x 1-3/4 in
Nominal Height
24 in
Nominal Width
16 in
Nominal Depth
2 in
Actual Height
15-3/8 in
Actual Depth
1-3/4 in
Actual Width
23-3/8 in

Details

Performance Rating
MERV 13
Air Filter Capacity
High Capacity
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments
Air Flow @ 300 fpm
800 cfm
Frame or Header Material
Beverage Board
Media Material
Synthetic
Item
Pleated Air Filter
Common Applications
LEED/Green
Removes Particles Down To
1.0 to 3.0 micron
Style - Air Filters
Panel
Filter Frame Color
White
Filter Efficiency - Air Filters
85%
Standards
UL 900
Initial Resistance @ 500 fpm
0.37 in wc
Media Color
White
Pleats per Linear Foot
19
Air Filter Item
Pleated Air Filter
Max. Temp.
180 Degrees F
Final Recommended Resistance
1 in wc
Max. Velocity
500 fpm
Media Area
11.2 sq ft
Air Flow @ 500 fpm
1,333 cfm
For Use With (Systems)
HVAC Systems
Initial Resistance @ 300 fpm
0.22 in wc

Description

Pleated Air Filter, Style - Air Filters Panel, Performance Rating MERV 13, Nominal Filter Size 16x24x2, Filter Efficiency - Air Filters 85 Percent, Air Filter Capacity High Capacity, Media Material Synthetic, Frame or Header Material Beverage Board, Common Applications LEED/Green, For Use With (Systems) HVAC Systems, Media Color White, Media Area 11.2 sq ft, Pleats per Linear Foot 19

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
