  5. 18x24x2 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron

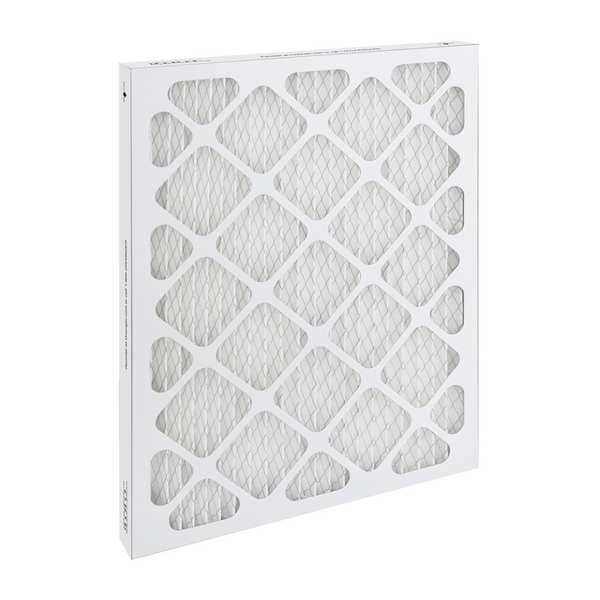

Zoro Select 18x24x2 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron 786EL1 - main

18x24x2 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron

  • Mfr # 786EL1

  • Zoro # G005574404

product price:  $8.59
/ea
Sold in multiples of 12 for $103.08

Key Features

Performance Rating
MERV 13
Air Filter Capacity
High Capacity
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments
Air Flow @ 300 fpm
900 cfm
Frame or Header Material
Beverage Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
786EL1
Zoro #
G005574404
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nominal Filter Size
18x24x2
Actual Filter Size
17-3/8 in x 23-3/8 in x 1-3/4 in
Nominal Height
24 in
Nominal Width
18 in
Nominal Depth
2 in
Actual Width
23-3/8 in
Actual Depth
1-3/4 in
Actual Height
17-3/8 in

Details

Performance Rating
MERV 13
Air Filter Capacity
High Capacity
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments
Air Flow @ 300 fpm
900 cfm
Frame or Header Material
Beverage Board
Media Material
Synthetic
Item
Pleated Air Filter
Standards
UL 900
Max. Velocity
500 fpm
Media Color
White
Air Flow @ 500 fpm
1,500 cfm
For Use With (Systems)
HVAC Systems
Filter Frame Color
White
Common Applications
LEED/Green
Media Area
13.1 sq ft
Removes Particles Down To
1.0 to 3.0 micron
Pleats per Linear Foot
22
Style - Air Filters
Panel
Air Filter Item
Pleated Air Filter
Initial Resistance @ 300 fpm
0.22 in wc
Max. Temp.
180 Degrees F
Final Recommended Resistance
1 in wc
Filter Efficiency - Air Filters
85%
Initial Resistance @ 500 fpm
0.37 in wc

Description

Pleated Air Filter, Style - Air Filters Panel, Performance Rating MERV 13, Nominal Filter Size 18x24x2, Filter Efficiency - Air Filters 85 Percent, Air Filter Capacity High Capacity, Media Material Synthetic, Frame or Header Material Beverage Board, Common Applications LEED/Green, For Use With (Systems) HVAC Systems, Media Color White, Media Area 13.1 sq ft, Pleats per Linear Foot 22
