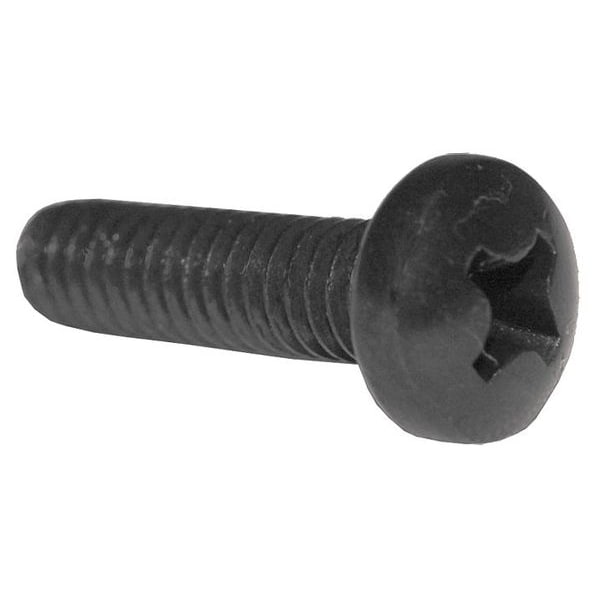

#8-32 x 5/8 in Phillips Pan Machine Screw, Black Oxide Steel, 100 PK
Mfr # 0810MPPB
Zoro # G5036272
CAD Available
product price: $5.49
/pk 100, $0.05/eaKey Features
Pan Head
Phillips Drive
CAD Drawing
System of Measurement
Inch
Drive Size
#2
Material
Steel
Finish
Black Oxide
Tensile Strength
60,000 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
0810MPPB
Zoro #
G5036272
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
#8-32
Fastener Length
5/8 in
Drive Size
#2
Head Height
0.115 in
Head Dia.
0.322 to 0.306 in
Hole Size
0.1631 to 0.1571 in
Screw Size
#8
Recommended Hole Size
5/32 in
Head Width
0.314 in
Maximum Head Height
7/64 in
Overall Length
3/4 in
Maximum Head Width
5/16 in
Description
Machine Screw, Head Type Pan, Material Steel, Finish Black Oxide, Drive Phillips, Thread Size #8-32, Fastener Length 5/8 in, Head Width 0.314 in, Head Height 0.115 in, Drive Size #2, Tensile Strength 60,000 psi, Dimensional Standards ASME B18.6.3, Pack Size Small, Minimum Thread Length Not Applicable, Type Machine Screw, Washer Outside Diameter Not Applicable, Washer Thickness Not Applicable, Maximum Head Width 5/16 in, Minimum Head Width Not Applicable, Maximum Head Height 7/64 in
