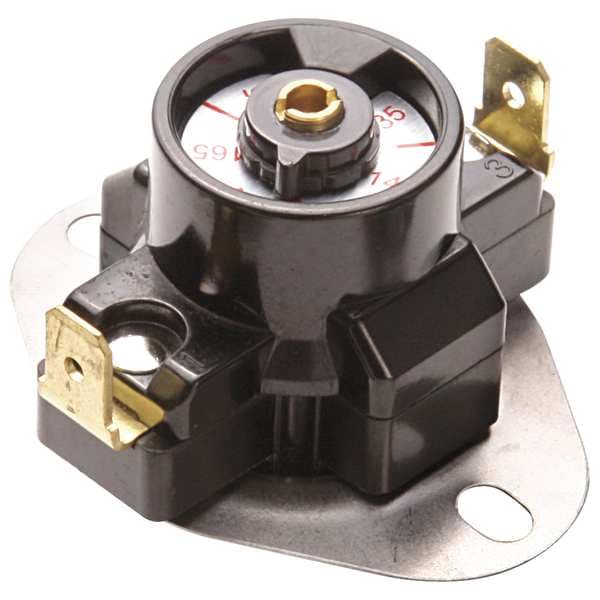

Adjustable Limit, Auto Reset, 170-250

original price: $12.85
9% off
new price: $11.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temp. Range (F) 170 to 250
  • Type Adjustable Limit, Automatic Reset
  • Switch Type SPST
  • Depth (In.) 1 3/4 in
  • Width (In.) 2 in
See all product information

Product Information

Dimensions

Depth (In.) 1 3/4 in
Width (In.) 2 in
Height (In.) 1 1/4 in
Mounting Base Length 2 in
Mounting Hole Diameter 1/8 in
Terminal Size 1/4 in
Overall Width 2 in
Overall Height 1 1/4 in
Overall Depth 1 3/4 in
Face Diameter 2 in
Mounting Base Width 1 3/4 in

Details

Item Temperature Limit Controller
Temp. Range (F) 170 to 250
Type Adjustable Limit, Automatic Reset
Switch Type SPST
Switch Closes @ (F) 170 to 210
Switch Opens @ (F) 210 to 250
Voltage Range 120 to 240
Resistive Amps @ 120V 25 A
Resistive Rating 240V 25
Pilot Duty Contacts (VA) 125 VA
Switch Action Open on Rise
Inductive Amps @ 240V 10 A
Inductive Amps @ 120V 14 A
Circuit #1 Switch Closes @ (F) 170 to 210
Circuit #1 Switch Opens @ (F) 210 to 250
Differential 40
Contact Form SPST
Temperature Differential 40 Degrees F
Input Voltage 120V AC, 240V AC
Resistive Amps @ 120V AC 25 A
Switch Opening Temperature 210 Degrees F, 250 Degrees F
Switch Closing Temperature 170 Degrees F, 210 Degrees F
Wire Connections Spade Terminals
Mounting Surface Mount
Standards cULus Recognized
Resistive Amps @ 277V AC 25 A
Pilot Contact Rating 125 VA
Application Adjustable Limit Control
Number of Mounting Holes 2
IP Rating Not Rated
Mounting Hole Center to Center Distance 1 5/8 in
Reset Type Automatic Reset
Product Type Temperature Limit Controller
Weight 1 oz
Resistive Amps @ 240V AC 25 A

Description

Temperature Limit Controller, Application Adjustable Limit Control, Mounting Surface Mount, Contact Form SPST, Switch Action Open on Rise, Reset Type Automatic Reset, Switch Closing Temperature 170 Degrees F, 210 Degrees F, Switch Opening Temperature 210 Degrees F, 250 Degrees F, Input Voltage 120V AC, 240V AC, Maximum Control Temperature Not Applicable, Minimum Control Temperature Not Applicable, Mounting Base Length 2 in, Mounting Base Width 1 3/4 in, Product Type Temperature Limit Controller
