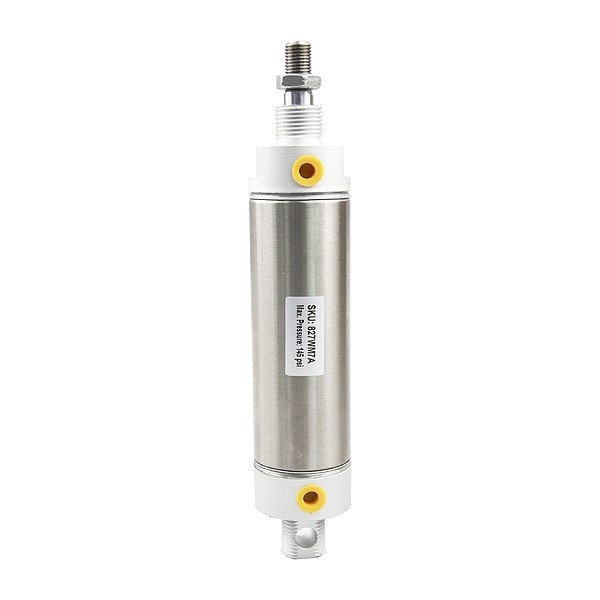

Air Cylinder, 1-1/4 In. Bore, 4 In. Stroke

  • Mfr # 827WN6

  • Zoro # G515544652

product price:
$
46.39
/ea

Key Features

Cylinder Action
Double Acting
Body Material
Stainless Steel
Rod Thread Length
3/4 in
Cylinder Type
Round Body
Magnetic Piston
Magnetic Piston
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
827WN6
Zoro #
G515544652
UPC #
-
Country of Origin
China
Item
Air Cylinder
Cylinder Action
Double Acting
Body Material
Stainless Steel
Cylinder Type
Round Body
Magnetic Piston
Magnetic Piston
Air Inlet Type
NPT
Minimum Operating Pressure
14.5 psi
Piston Rod Material Grade
1045
System of Measurement
Inch
Includes
7/16"-20 UNF Nut, Pin
End Cap Material Grade
6061-T6
Mounting Orientation
Horizontal, Vertical
Piston Material
Aluminum
For Fluid Type
Compressed Air
Series
NCM
Maximum Operating Temperature
176 Degrees F
Weight
0.93 lb
Body Material Grade
SUS304
Minimum Operating Temperature
-4 Degrees F
Cylinder Repair
Non-Repairable
Inlet Gender
Female
Maximum Operating Pressure
145 psi
Actuation Type
Air Extend, Air Retract
End Cap Material Finish
Anodized
Number of Rods
Single Rod
End Cap Material
Aluminum
Air Inlet Center to Center Distance
6 3/8 in
Piston Rod Material
Carbon Steel
Piston Rod Material Finish
Chrome Plated
Cushion Type
Rubber Cushion
Maximum Flow Rate
110.1 g/min

Description

Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Nose, Pivot, Bore Diameter 1 1/4 in, Cushion Type Rubber Cushion, Stroke Length 4 in, Inlet Size 1/8 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Not Applicable, Piston Rod Material Finish Chrome Plated
