Shop ZORO SELECT

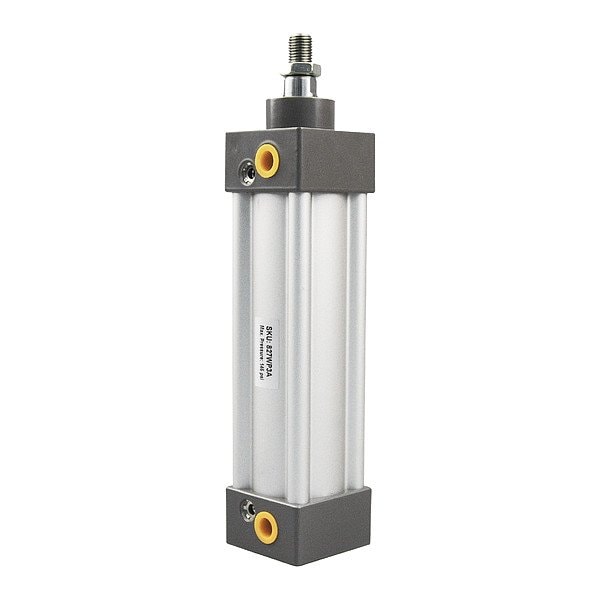

Air Cylinder, 2In Bore, 2In Stroke

  • Mfr # 827WP8

  • Zoro # G215544648

product price:
$
51.49
/ea

Key Features

Cylinder Action
Double Acting
Body Material
Aluminum
Rod Thread Length
3/4 in
Cylinder Type
Extruded
Magnetic Piston
Magnetic Piston
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
827WP8
Zoro #
G215544648
UPC #
-
Country of Origin
China
Item
Air Cylinder
Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Extruded
Magnetic Piston
Magnetic Piston
Includes
(8) 1/4"-28 UNF Screws, 7/16"-20 UNF Nut
Air Inlet Center to Center Distance
4 31/64 in
Piston Rod Material Finish
Chrome Plated
End Cap Material Grade
384
Weight
2.23 lb
System of Measurement
Inch
Body Material Grade
6063-T5
Number of Rods
Single Rod
Series
NBC
Piston Rod Material
Carbon Steel
Inlet Gender
Female
Minimum Operating Pressure
14.5 psi
Cushion Type
Air Cushion
Maximum Operating Pressure
145 psi
End Cap Material Finish
Powder Coated
Cylinder Repair
Repairable
Body Material Finish
Anodized
Air Inlet Type
NPT
Maximum Operating Temperature
176 Degrees F
Piston Rod Material Grade
1045
Mounting Orientation
Horizontal, Vertical
Minimum Operating Temperature
-4 Degrees F
For Fluid Type
Compressed Air
Maximum Flow Rate
268.8 g/min
Actuation Type
Air Extend, Air Retract
End Cap Material
Aluminum
Piston Material
Aluminum

Description

Air Cylinder, Body Material Aluminum, Cylinder Type Extruded, Cylinder Repair Repairable, Magnetic Piston Magnetic Piston, Mounting Type Sleeve Nut, Bore Diameter 2 in, Cushion Type Air Cushion, Stroke Length 2 in, Inlet Size 1/4 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front, Rear
