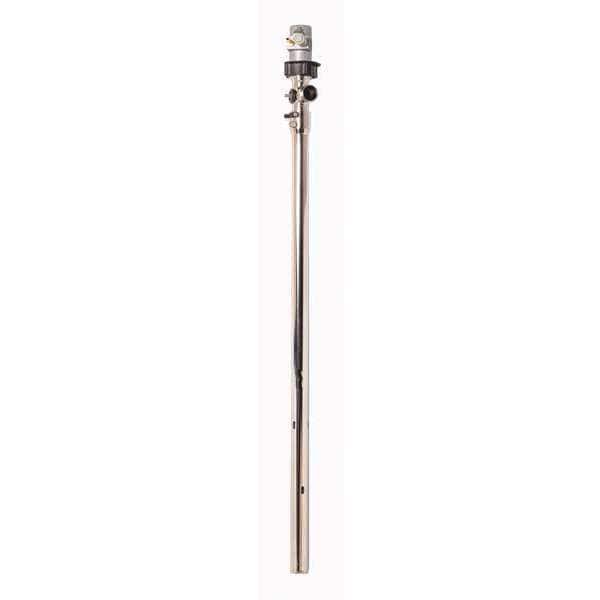

Air Drum Pump, w/Mixer, Inlet Size 1-5/8"

  • Mfr # ACT-ELEMXRSSA

  • Zoro # G5080330

product price:  $2,664.99
/ea
Free Shipping & Returns

Key Features

For Media Type
Ammonia, Antifreeze, Brake Fluid, Calcium Chloride, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid
For Container Size
15 gal, 30 gal, 55 gal
Max. Flow Rate
63 gpm
Max. Viscosity
1,000 cps
Diesel Exhaust Fluid Compatible
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
ACT-ELEMXRSSA
Zoro #
G5080330
UPC #
791885905534
Country of Origin
Multiple

Dimensions

For Container Size
15 gal, 30 gal, 55 gal
Adapter Dia.
2"
Inlet Size
1-5/8"
Suction Tube Length
39 in
Manufacturers Warranty Length
1 yr.
Air Inlet Size
1/4 in FNPT
Discharge Size FPT (In.)
1-1/4
Height Above Container
9 in
Air Outlet Size
1/4 in
Overall Length
44 in
Bung Connection Dia.
2 in
Overall Height
44 in
Overall Width
4-45/64 in
Air Inlet Connection Size
1/4 in
Adapter Connection Diameter
2 in

Details

Item
Air Drum Pump
For Media Type
Ammonia, Antifreeze, Brake Fluid, Calcium Chloride, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid
Max. Flow Rate
63 gpm
Max. Viscosity
1,000 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Stainless Steel, Tefzel
Includes Suction Tube
Yes
For Use With
55 gal Drums, Chemicals
Discharge Tube Outlet ID
1 1/4 in
Discharge Tube Outlet OD
1 1/2 in
Motor RPM
10,000 RPM
Max. Air Inlet (PSI)
86
Includes
Hose Barb, Intake Tube, Mixer
Features
Air Motor with Silencer, On/Off Mixing
Piston Material
Tefzel(R)
Suction Tube Material
316 Stainless Steel
Agency Compliance
CE, EX
Self-Priming
Yes
Adapter Type
Bung
Adapter Material
Polyethylene
Max. Flow GPM
63 gpm
Motor Enclosure
TEFC
Metered
No
Seal Material
Tefzel
Not Recommended Chemicals
Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%
Max. Oil Flow
40 gpm
Suction Tube ID
1 3/8 in
Food Grade
Yes
Suction Tube OD
1 5/8 in
Includes Nozzle
No
Pump Connection ID
1 in
Min. Air Pressure
45 psi
Housing Material - Pumps
Aluminum
Noise Level
80 dB
Discharge Connection Type
Hose Barb
Pump Connection Type
MNPT
Power Source
Air
Max. Fluid Temp.
250 Degrees F
Duty Cycle
Continuous
Includes Bung Adapter
Yes
Includes Spout
No
Compatible Chemicals
Ammonia (Liquids), Antifreeze (Coolant), Brake Fluid, Calcium Chloride, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Methyl (Methanol), Pesticides, Sodium Bicarbonate (10%), Windshield Washer Fluid
Includes Discharge Hose
No
Variable Speed
Yes
Runs Dry
Yes
Pump Connection OD
1 1/2 in
Max. Head Pressure
10 psi
Max. Air Pressure
140 psi
For Container Type
Drum
Max. Head - Pumps
43 ft
Explosion Proof
Yes
Gear Lube
NT
Adapter Connection Type
MNPT
Pump Ratio
1:1
Min. Operating Temp.
33 Degrees F
Maximum Oil Flow
40 gpm
Maximum Flow Rate
63 gpm
Mounting Bracket Included
No Mounting Bracket Included
Motor Enclosure Design
Totally Enclosed Fan Cooled
Pressure Ratio
1:1
Maximum Head
43 ft
Pump Technology
Progressing Cavity
Chemical Compatibility
Ammonia Liquid, Antifreeze Coolant, Brake Fluid, Calcium Chloride, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Methanol, Pesticides, Sodium Bicarbonate 10%, Windshield Washer Fluid
Maximum Air Pressure
140 psi
Maximum Outlet Pressure
10 psi
Maximum Viscosity
1,000 cps
Minimum Air Pressure
45 psi
Wetted Material
Stainless Steel/Tefzel
Motor Horsepower
1 hp
Container Cover Type Included
No Cover Included
Includes Follower Plate
No Follower Plate Included
Hazardous Location Class
Not Rated
Standards
CE, EX
Static Protection
No Grounding Line Included
Adapter Connection Standard
MNPT
Minimum Fluid Temperature
33 Degrees F
Maximum Fluid Temperature
120 Degrees F
Meter Type Included
No Meter Included
Motor Speed
10,000 RPM
Air Inlet Connection Type
FNPT
Maximum Head Pressure
10 psi
Air Consumption
32 cfm
Housing Material
316 Stainless Steel

Description

Air Drum Pump, Max. Air Pressure 140 psi, Spout Connection Size Not Applicable, Suction Tube Material 316 Stainless Steel, Self-Priming Yes, Overall Length 44 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Features Air Motor with Silencer, On/Off Mixing, Spout Length Not Applicable, Food Grade Yes, Thermal Protection Not Applicable, Air Outlet Size 1/4 in, Bung Connection Dia. 2 in, Air Consumption 32 cfm, Hose Length Not Applicable, Variable Speed Yes, Includes Discharge Hose No

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
