Shop ZORO SELECT

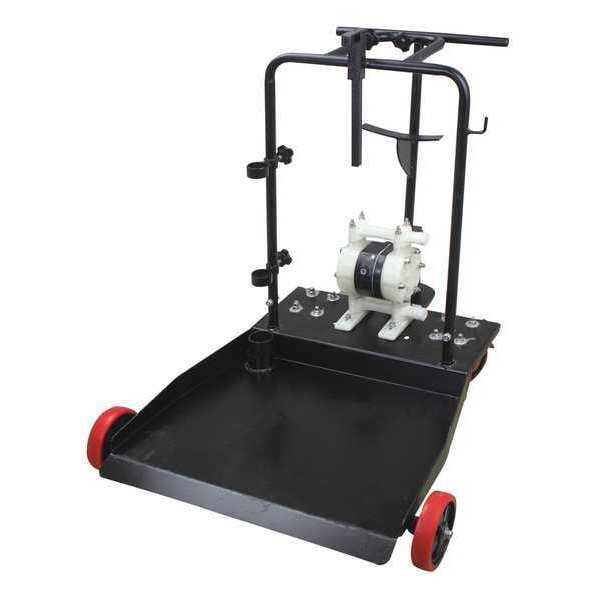

Air Operated Drum Pump, with Drum Cart

  • Mfr # DIASYS-CART

  • Zoro # G7343799

product price:
$
1,981.99
/ea
Additional $60.00 delivery surcharge applies per item.
See details

Key Features

For Media Type
Ammonia, Antifreeze, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Isopropanol, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid
For Container Size
15 gal, 30 gal, 55 gal
Max. Flow Rate
13 gpm
Max. Viscosity
500 cps
Diesel Exhaust Fluid Compatible
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DIASYS-CART
Zoro #
G7343799
UPC #
791885905565
Country of Origin
India

Dimensions

For Container Size
15 gal, 30 gal, 55 gal
Manufacturers Warranty Length
1 yr.
Discharge Size FPT (In.)
1/2
Inlet Size
1/2"
Hose Length
78 in
Discharge Tube Length
6 ft. 5"
Air Inlet Size
3/8 in FNPT
Suction Tube Length
36 in
Height Above Container
9 in
Overall Length
41 1/2 in
Air Outlet Size
3/8 in
Hose Outside Dia.
3/4 in
Overall Height
38 in
Overall Width
31 in
Hose Inside Diameter
1/2 in
Air Inlet Connection Size
3/8 in
Hose Outside Diameter
3/4 in
Wire Rope Length
41 1/2 in
Length
41 1/2 in

Details

Item
Air Drum Pump
For Media Type
Ammonia, Antifreeze, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Isopropanol, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid
Max. Flow Rate
13 gpm
Max. Viscosity
500 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Buna-N, Polypropylene, Stainless Steel, Tefzel
Includes Suction Tube
Yes
For Use With
55 gal Drums, Chemicals
Hose Tube Material
Buna-N
Discharge Tube Outlet ID
1/2 in
Discharge Tube Outlet OD
7/8 in
Max. Flow GPM
13 gpm
Max. Air Inlet (PSI)
100
Includes
Diaphragm, Dispensing Control, Intake Tube
Discharge Tubing Material
Buna-N
Piston Material
Buna-N
Suction Tube Material
Buna-N
Self-Priming
Yes
Agency Compliance
EX
Metered
No
Seal Material
Buna-N
Features
High Suction Lift
Power Source
Air
Housing Material - Pumps
Aluminum
Includes Discharge Hose
Yes
Pump Connection OD
7/8 in
Includes Nozzle
Yes
Variable Speed
No
Pump Connection Type
FNPT
Discharge Connection Type
Hose Barb
Max. Head Pressure
10 psi
Duty Cycle
Continuous
Min. Air Pressure
20 psi
Nozzle Operation
Manual
Suction Tube ID
7/16 in
Nozzle Material
Polypropylene
Includes Spout
No
For Container Type
Drum
Noise Level
70 dB
Suction Tube OD
1/2 in
Pump Connection ID
1/2 in
Runs Dry
Yes
Max. Air Pressure
140 psi
Includes Bung Adapter
No
Food Grade
No
Max. Oil Flow
13 gpm
Max. Fluid Temp.
130 Degrees F
Compatible Chemicals
Ammonia (Liquids), Antifreeze (Coolant), Brake Fluid, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Isopropyl (Isopropanol), Methyl (Methanol), Pesticides, Sodium Bicarbonate (10%), Windshield Washer Fluid
Not Recommended Chemicals
Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%
Max. Head - Pumps
20 ft
Explosion Proof
Yes
Gear Lube
NT
Pump Ratio
1:1
Min. Operating Temp.
45 Degrees F
Hazardous Location Class
Not Rated
Air Inlet Connection Type
FNPT
Hose Cover Material
Buna-N
Static Protection
Not Groundable
Container Cover Type Included
No Cover Included
Maximum Head
20 ft
Maximum Air Pressure
140 psi
Chemical Compatibility
Ammonia Liquid, Antifreeze Coolant, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Isopropanol, Methanol, Pesticides, Sodium Bicarbonate 10%, Windshield Washer Fluid
Air Consumption
12 cfm
Standards
EX
Wetted Material
Buna-N/PP/Stainless Steel/Tefzel
Housing Material
Polypropylene
Maximum Fluid Temperature
120 Degrees F
Minimum Fluid Temperature
45 Degrees F
Pressure Ratio
1:1
Meter Type Included
No Meter Included
Minimum Air Pressure
20 psi
Maximum Flow Rate
13 gpm
Maximum Outlet Pressure
100 psi
Maximum Head Pressure
10 psi
Pump Technology
Diaphragm
Maximum Oil Flow
13 gpm
Mounting Bracket Included
No Mounting Bracket Included
Motor Enclosure Design
Totally Enclosed Fan Cooled
Maximum Viscosity
500 cps
Includes Follower Plate
No Follower Plate Included
Power Source - TS Only
Air
Power Source - old
Air

Description

Air Drum Pump, Max. Air Pressure 140 psi, Spout Connection Size Not Applicable, Suction Tube Material Buna-N, Self-Priming Yes, Length 41 1/2 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Features High Suction Lift, Spout Length Not Applicable, Food Grade No, Thermal Protection Not Applicable, Air Outlet Size 3/8 in, Air Consumption 12 cfm, Hose Length 78 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level 70 dB, Max. Viscosity 500 cps, Duty Cycle Continuous
