  9. Amber Polyimide Film Stock 12" L x 12" W x 0.001" Thick
Zoro Select Amber Polyimide Film Stock 12" L x 12" W x 0.001" Thick BULK-PF-PI-1 - main

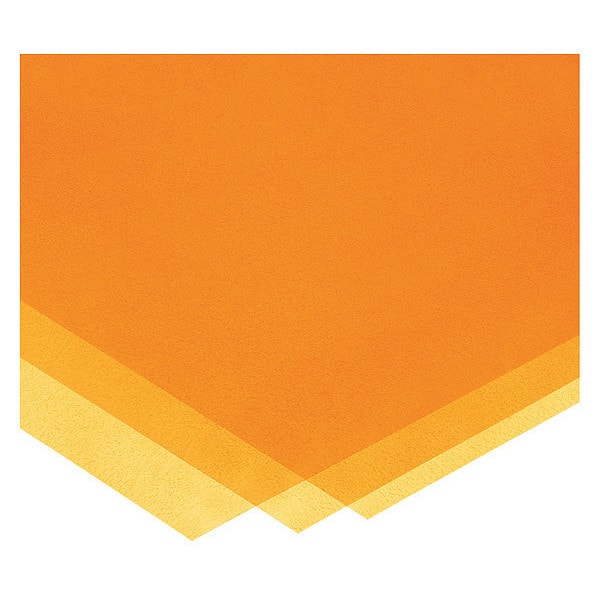

Amber Polyimide Film Stock 12" L x 12" W x 0.001" Thick

  • Mfr # BULK-PF-PI-1

  • Zoro # G7284367

product price: $9.75
/ea

Key Features

Plastic Material
Polyimide
Plastic Thickness
0.001"
Plastic Width
12"
Plastic Length
12"
Plastic Color
Amber
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BULK-PF-PI-1
Zoro #
G7284367
UPC #
193005347796
Country of Origin
China

Dimensions

Plastic Thickness
0.001"
Plastic Width
12"
Plastic Length
12"
Length
12"
Thickness
0.001"
Width
12"
Nominal Size
12 in W x 12 in L

Details

Item
Polyimide Sheet
Plastic Material
Polyimide
Plastic Color
Amber
Max. Temp. (F)
750 Degrees F
Min. Temp. (F)
-410 Degrees F
Color
Amber
Standards
UL 94 V-0
Plastic Properties
Electrically Insulating, High Temperature
Tensile Strength
16,000 psi
Impact Strength
Not Rated
Material
Polyimide
Impact Strength Rating
Poor
Grade
Standard
Temperature Range
-450 Degrees to 750 Degrees F
Machinability
Not Rated
Shape
Square
Tensile Strength Rating
Excellent
Plastic Hardness Rating
Not Rated
Water Absorption Rating
Poor
Plastic Hardness
Not Rated
Plastic Clarity
Translucent
Corrosion and Chemical Resistance
Excellent
Friction Rating
Slippery
Wear Factor
Excellent
Backing Type
No Backing
Plastic Density
0.051 lb/cu in
Maximum Temperature
750 Degrees F
UV Resistant
No
Plastic Thickness Tolerance
+/-10%
Minimum Temperature
-450 Degrees F
Friction Coefficient
Not Rated
Water Absorption
1.4 %
Flexural Modulus
Not Rated
Static-Resistant
Not Static-Resistant
Dielectric Strength
Not Rated
Elongation
68 %
FDA Compliance
Not FDA Compliant
Coefficient of Thermal Expansion
Not Rated
Weight
0.1 lb
Wear Rate
Not Rated
Product Form
Sheet
Rockwell Hardness
Not Rated
Shore Hardness
Not Rated
Product Type
Plastic Film
Scratch-Resistant
Not Scratch-Resistant
Metal Detectable
Not Metal Detectable
UV-Resistant
Not UV-Resistant

Description

The ZORO SELECT - BULK-PF-PI-1 is a Film Stock plastic sheet, made from Polyimide material. This amber-colored sheet is known for its excellent corrosion and chemical resistance, making it suitable for various industrial applications. With a standard grade and fair machinability, this film stock can be cut and shaped to meet specific needs without causing damage to the material or equipment.

  • Backing Type: The plain backing type allows for easy attachment to other surfaces or materials in different industrial processes.
  • Friction Rating: Its slippery friction rating makes it ideal for applications where movement control and stability are essential.
  • Temperature Range: It's rated for use within the temperature range of -450 Degrees F to 750 Degrees F.
  • Nominal Size: The nominal size of 12 in W x 12 in L provides ample coverage area for various projects.
  • Plastic Properties: The film stock has properties that include electrical insulation and resistance to high temperatures.
  • Tensile Strength: This plastic sheet has a tensile strength rating of 16,000 psi.
  • Standards Compliance: Complies with UL 94 V-0 standards which may be suitable for certain applications
