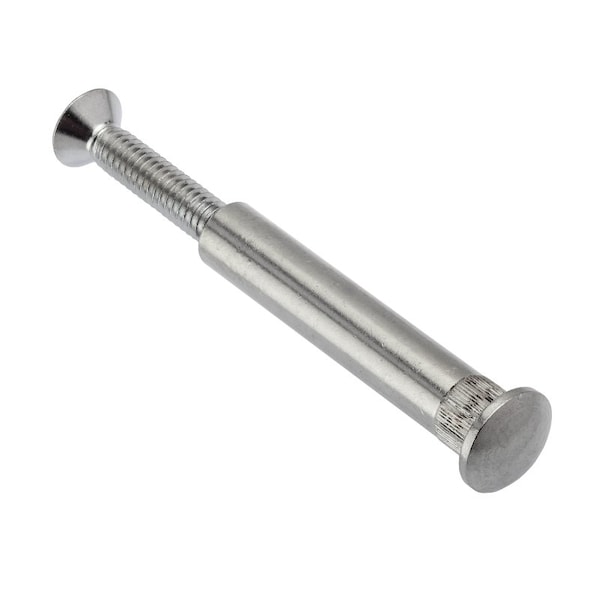

Arch Barrel, 1/4"-20, 2 1/16 in Brl Lg, 3/8 in Brl Dia, Brass Chrome-Plated

  • Mfr # Z5300

  • Zoro # G2045364

CAD Available
product price:  $7.29
/ea

Key Features

CAD Drawing
System of Measurement
Inch
Type
Knurled Barrel
Thread Size
1/4"-20
Material
Brass
Finish
Chrome-Plated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Z5300
Zoro #
G2045364
UPC #
-
Country of Origin
United States

Dimensions

Thread Size
1/4"-20
Barrel Length
2 1/16 in
Barrel Diameter
3/8 in
Screw Head Dia.
15/32 in
Barrel Head Dia.
9/16 in
Screw Head Height
5/32 in
Barrel Head Height
5/32 in
Dia./Thread Size
1/4"-20
Barrel Dia.
3/8 in
Screw Thread Length
1 1/2 in
Barrel Thread Depth
1 1/4 in
Outside Dia.
3/8"
Screw Head Diameter
15/32 in
Screw Minimum Thread Length
1 1/2 in
Grip Size
2 1/4 in
Barrel Head Diameter
9/16 in
Screw Size
1/4"
Screw Length
1 1/2 in

Details

CAD Available
Yes
Item
Arch Barrel
System of Measurement
Inch
Type
Knurled Barrel
Material
Brass
Finish
Chrome-Plated
Barrel Head Style
Truss
Barrel Drive Type
No Drive
Includes
82 Degrees Screw
Screw Material
Steel
Rockwell Hardness
B60
Drive Type
Unslotted
Tensile Strength (PSI)
55,000 psi
Head Style
Truss
Grip Range
2-1/4
Screw Head Style
Truss
Pack Size
Small
Dimensional Standards
AMPG 2000 SB.01
Screw Drive Style
Phillips
Made in North America
Made in North America
Tensile Strength
55,000 psi
Resistance Properties
Corrosion-Resistant, Rust-Resistant
Head Shape
Round

Description

Binding Post Assembly, Material Brass, Barrel Head Style Truss, Screw Head Style Truss, Thread Size 1/4 In.-20, Barrel Length 2 1/16 in, Barrel Diameter 3/8 in, Barrel Thread Depth 1 1/4 in, Barrel Drive Type Unslotted, Screw Length 1 1/2 in, Screw Drive Style Phillips, Finish Chrome-Plated, Barrel Head Diameter 9/16 in, Barrel Head Height 5/32 in, Dimensional Standards AMPG 2000 SB.01, Grip Size 2 1/4 in, Includes 82 Degrees Screw, Made in North America Made in North America, Pack Size Small
