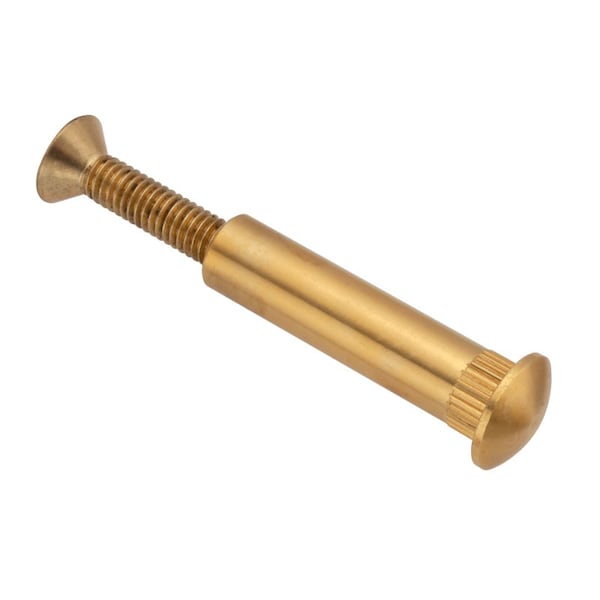

Arch Barrel, 5/16"-18, 2 1/16 in Brl Lg, 1/2 in Brl Dia, Brass Plain
Mfr # Z5405
Zoro # G3235583
$6.59
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- System of Measurement Inch
- Type Knurled Barrel
- Thread Size 5/16"-18
- Material Brass
- Finish Plain
Product Information
- Brand Zoro Select
- MFR # Z5405
- Zoro # G3235583
- Country of Origin United States
- Category Binding Barrels
Dimensions
Thread Size | 5/16"-18 |
Barrel Length | 2 1/16 in |
Barrel Diameter | 1/2 in |
Screw Head Dia. | 37/64 in |
Barrel Head Dia. | 3/4 in |
Barrel Head Height | 3/16 in |
Barrel Dia. | 1/2 in |
Dia./Thread Size | 5/16"-18 |
Screw Thread Length | 1 1/2 in |
Screw Head Height | 0.191 in |
Barrel Thread Depth | 1 1/4 in |
Screw Size | 5/16"-18 |
Screw Minimum Thread Length | 1 1/2 in |
Barrel Head Diameter | 0.75 in |
Dimensional Standards | AMPG 2000 SB.01 |
Screw Head Diameter | 37/64 in |
Grip Size | 2 1/4 in |
Details
Description
Architectural Bolt, Material Brass, Barrel Head Style Truss, Screw Head Style Flat, Thread Size 5/16 In.-18, Barrel Length 2 1/16 in, Barrel Diameter 1/2 in, Barrel Thread Depth 1 1/4 in, Barrel Drive Type No Drive, Screw Drive Style Phillips, Finish Plain, Barrel Head Diameter 0.75 in, Barrel Head Height 3/16 in, Dimensional Standards AMPG 2000 SB.01, Grip Size 2 1/4 in, Includes 82 Degree Screw, Made in North America Yes, Pack Size Small
