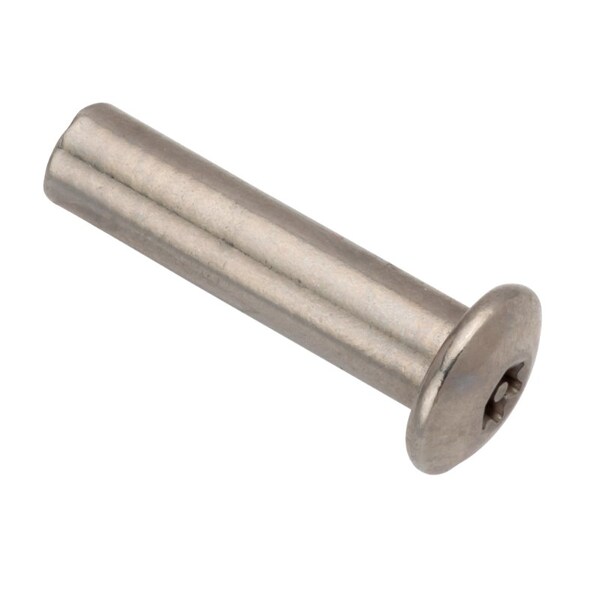

Barrel Bolt, #10-24, 1 in Brl Lg, 1/4 in Brl Dia, Stainless Steel Plain
Mfr # Z4416T6S
Zoro # G2380296
CAD Available
product price:Â $7.99
/eaKey Features
CAD Drawing
System of Measurement
Inch
Type
Female Binding Barrel
Thread Size
#10-24
Material
Stainless Steel
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Z4416T6S
Zoro #
G2380296
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Thread Size
#10-24
Barrel Length
1 in
Barrel Diameter
1/4 in
Barrel Head Height
7/64 in
Barrel Head Dia.
7/16 in
Barrel Dia.
1/4 in
Dia./Thread Size
#10-24
Drive Size
T20
Barrel Thread Depth
3/8 in
Outside Dia.
1/4"
Grip Size
1 in
Barrel Head Diameter
7/16 in
Screw Drive Size
T20
Description
Female Binding Barrel, Finish Plain, Material Stainless Steel, Barrel Head Style Truss, Barrel Drive Type Pin-In Six-Lobe, Thread Size #10-24, Barrel Length 1 in, Barrel Diameter 1/4 in, Barrel Thread Depth 3/8 in, Screw Length Not Applicable, Barrel Head Diameter 7/16 in, Barrel Head Height 7/64 in, Grip Size 1 in, Made in North America Made in North America, Material Grade/Class 18-8, Material Quality Standards ASTM A582, Pack Size Small
