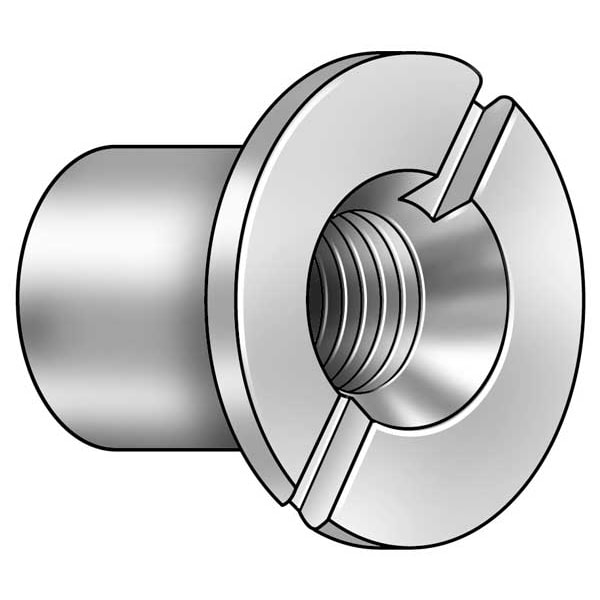

Barrel Bolt, #10-32, 1 in Brl Lg, 5/16 in Brl Dia, Stainless Steel Plain, 5 PK
Mfr # Z5030
Zoro # G0916982
CAD Available
product price:Â $27.15
/pk 5, $5.43/eaKey Features
CAD Drawing
System of Measurement
Inch
Type
Female Binding Barrel
Thread Size
#10-32
Material
Stainless Steel
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
Z5030
Zoro #
G0916982
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
#10-32
Barrel Length
1 in
Barrel Diameter
5/16 in
Barrel Dia.
5/16 in
Barrel Head Height
1/8 in
Dia./Thread Size
#10-32
Barrel Head Dia.
1/2 in
Outside Dia.
5/16"
Grip Size
1 in
Barrel Head Diameter
1/2 in
Description
Female Binding Barrel, Finish Plain, Material Stainless Steel, Barrel Head Style Flat, Barrel Drive Type Slotted, Thread Size #10-32, Barrel Length 1 in, Barrel Diameter 5/16 in, Screw Length Not Applicable, Barrel Head Diameter 1/2 in, Barrel Head Height 1/8 in, Dimensional Standards AMPG 2000 SB.04, Grip Size 1 in, Includes -, Made in North America Made in North America, Material Grade/Class 18-8, Material Quality Standards ASTM A582, Pack Size Small, Package Quantity 5
