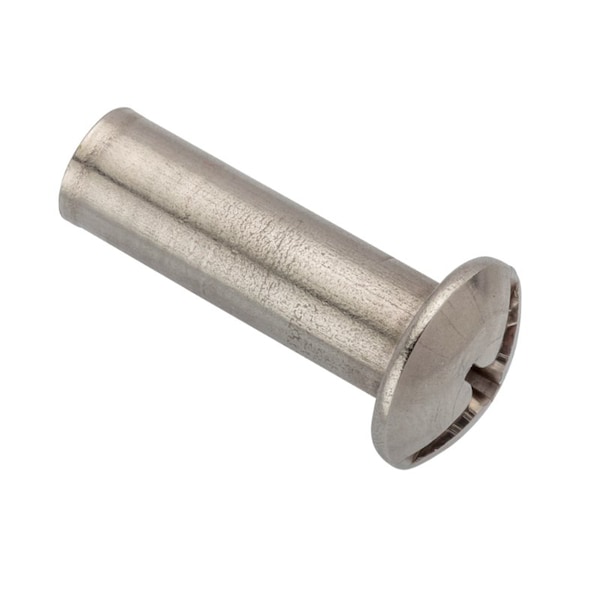

Barrel Bolt, 1/4"-20, 1 in Brl Lg, 5/16 in Brl Dia, Stainless Steel Plain, 5 PK
Mfr # Z4446SS
Zoro # G2713155
CAD Available
product price:Â $16.25
/pk 5, $3.25/eaKey Features
CAD Drawing
System of Measurement
Inch
Type
Female Binding Barrel
Thread Size
1/4"-20
Material
Stainless Steel
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Z4446SS
Zoro #
G2713155
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Thread Size
1/4"-20
Barrel Length
1 in
Barrel Diameter
5/16 in
Barrel Dia.
5/16 in
Barrel Head Dia.
9/16 in
Barrel Thread Depth
3/8 in
Dia./Thread Size
1/4"-20
Barrel Head Height
5/32 in
Outside Dia.
5/16"
Grip Size
1 in
Barrel Head Diameter
9/16 in
Description
Female Binding Barrel, Finish Plain, Material Stainless Steel, Barrel Head Style Truss, Barrel Drive Type Combination Slotted/Phillips, Thread Size 1/4 In.-20, Barrel Length 1 in, Barrel Diameter 5/16 in, Barrel Thread Depth 3/8 in, Screw Length Not Applicable, Barrel Head Diameter 9/16 in, Barrel Head Height 5/32 in, Grip Size 1 in, Made in North America Not Made in North America, Material Grade/Class 18-8, Material Quality Standards ASTM A582, Pack Size Small, Package Quantity 5
