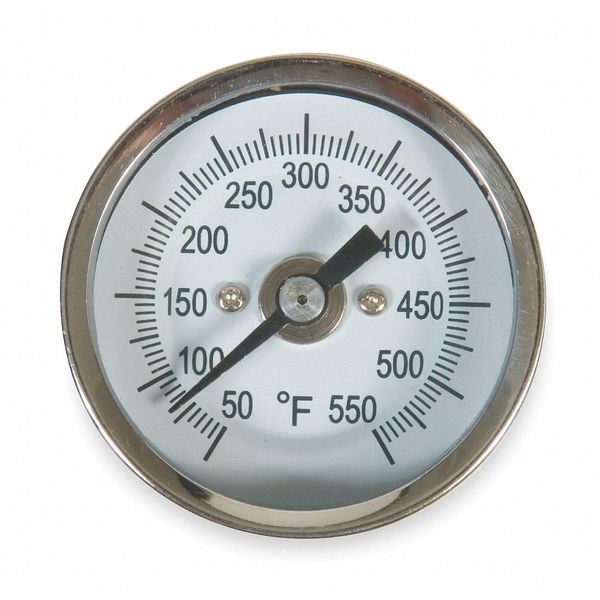

Bimetal Thermom, 2 In Dial, 50 to 550F

Mfr # 1NFX7
Zoro # G1697376

14.45

Key Features

Accuracy

+/-1 % @ 151 to 450 Degrees F, +/-1.5% Above 451 Degrees F, +/-1.5 % Below 150 Degrees F

Connection Location

Back

Dial Size

2 in

Case Material

Stainless Steel

Stem Material

304 Stainless Steel

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 1NFX7
Zoro #: G1697376
UPC #: 190735402757
Country of Origin: China

Dimensions

Dial Size: 2 in
Connection Size: 1/4 in NPT
Stem Length: 9 in
Stem Dia.: 1/4 in
Manufacturers Warranty Length: Limited 3 yr
Dial Diameter: 2 in
Manufacturer Warranty Length: 3 yr
Stem Diameter: 0.25 in
Thread Size: 1/4 in

Details

Item: Dial Thermometer
Accuracy: +/-1 % @ 151 to 450 Degrees F, +/-1.5% Above 451 Degrees F, +/-1.5 % Below 150 Degrees F
Connection Location: Back
Case Material: Stainless Steel
Stem Material: 304 Stainless Steel
Temp. Range (F): 50 Degrees to 550 Degrees F
Sensing Element: Bimetal
Window Material: Glass
Coil Finish: Silicone for Superior Time Response and Vibration Dampening
Adjustments: External
Temp. Range (C): 10 Degrees to 290 Degrees
Case: Hermetically Sealed
Application: General Purpose Industrial
Graduations: 5 Degrees F
Long Reach: No
Construction: 304 Stainless Steel Housing and Stem with Glass Lens
Thread Type: NPT
Scale: Fahrenheit
Includes NIST-Traceable Certificate: No
Maximum Operating Pressure: Not Rated
Glow-in-the-Dark: No
Corrosion Resistant: No
Thread Gender: Male
Lens Material: Glass
Vibration Resistant: No
Temperature Range: 50 Degrees to 550 Degrees F
Process Connection: 1/4 in NPT
Maximum Temperature F: 550 Degrees F
Minimum Temperature F: 50 Degrees F
Case Features: Hermetically Sealed
Scale Type: Dial
Shatterproof: No
Housing Material: Stainless Steel
Functions: Manual Calibration
Thermometer Type: Industrial Dial Thermometer
Lead Free: No
Maximum Temperature °F: 550 Degrees F
Minimum Temperature °F: 50 Degrees F
Product Type: Direct Reading Thermometer
Adjustment Location: External
Display Type: Dial
Temperature Units: Fahrenheit
Hermetically Sealed Case: Hermetically Sealed
Housing Stainless Steel Grade: 304
Mounting Hardware: Thread
Maximum Temperature (°F): 550 Degrees F
Mount Position: Back

Description

Dial Thermometer, Temperature Range 50 Degrees to 550 Degrees F, Stem Length 9 in, Dial Diameter 2 in, 1/4 in NPT, Back, Includes NIST-Traceable Certificate No, Housing Material Stainless Steel, Lens Material Glass
