Zoro Select Bimetal Thermom, 3 In Dial, 50 to 550F 1NGA3 - main

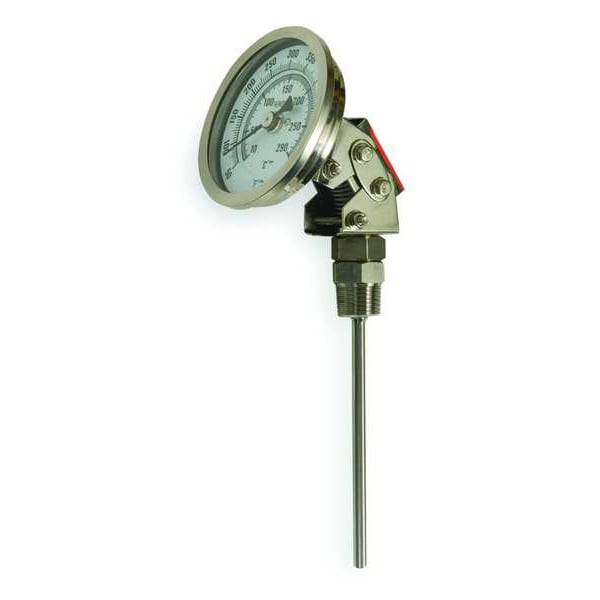

Bimetal Thermom, 3 In Dial, 50 to 550F

  • Mfr # 1NGA3

  • Zoro # G3377105

product price: $39.39
/ea

Key Features

Accuracy
151 Degrees to 450 Degrees F: +/-1%, Greater than 451 Degrees F: +/-1.5%, Less Than or Equal To 150 Degrees F: +/-1.5%
Connection Location
Adjustable
Dial Size
3 in
Case Material
Stainless Steel
Stem Material
304 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1NGA3
Zoro #
G3377105
UPC #
190735402986
Country of Origin
China

Dimensions

Dial Size
3 in
Connection Size
1/2 in NPT
Stem Length
2.5 in
Stem Dia.
1/4 in
Manufacturers Warranty Length
Limited 3 yr
Manufacturer Warranty Length
3 yr
Thread Size
1/2 in
Stem Diameter
0.25 in
Dial Diameter
3 in

Details

Item
Dial Thermometer
Accuracy
151 Degrees to 450 Degrees F: +/-1%, Greater than 451 Degrees F: +/-1.5%, Less Than or Equal To 150 Degrees F: +/-1.5%
Connection Location
Adjustable
Case Material
Stainless Steel
Stem Material
304 Stainless Steel
Temp. Range (F)
50 Degrees to 550 Degrees
Sensing Element
Bimetal
Window Material
Glass
Case
Hermetically Sealed
Vertical Adjustment Range
0 Degrees to 180 Degrees
Temp. Range (C)
10 Degrees to 290 Degrees
Adjustments
External
Coil Finish
Silicone for Superior Time Response and Vibration Dampening
Horizontal Adjustment Range
0 Degrees to 360 Degrees
Glow-in-the-Dark
No
Lens Material
Glass
Minimum Temperature C
10 Degrees C
Scale
Celsius, Fahrenheit
Temperature Range
50 Degrees to 550 Degrees F/10 Degrees to 290 Degrees C
Application
General Purpose Industrial
Corrosion Resistant
No
Shatterproof
No
Graduations
5 Degrees F/2 Degrees C
Thread Type
NPT
Maximum Operating Pressure
Not Rated
Minimum Temperature F
50 Degrees F
Thermometer Type
Industrial Dial Thermometer
Vibration Resistant
No
Case Features
Hermetically Sealed
Process Connection
1/2 in NPT
Maximum Temperature F
550 Degrees F
Maximum Temperature C
290 Degrees C
Scale Type
Dial
Housing Material
304 Stainless Steel
Construction
304 Stainless Steel Housing and Stem with Glass Lens
Lead Free
No
Includes NIST-Traceable Certificate
No
Thread Gender
Male
Long Reach
No
Functions
Manual Calibration
Maximum Temperature °F
550 Degrees F
Maximum Temperature °C
290 Degrees C
Minimum Temperature °F
50 Degrees F
Minimum Temperature °C
10 Degrees C
Maximum Temperature °C
290 Degrees C
Minimum Temperature °C
10 Degrees C
Maximum Temperature °F
550 Degrees F
Minimum Temperature °F
50 Degrees F

Description

Dial Thermometer, Temperature Range 50 Degrees to 550 Degrees F/10 Degrees to 290 Degrees C, Stem Length 2.5 in, Dial Diameter 3 in, 1/2 in NPT, Adjustable-Angle, Includes NIST-Traceable Certificate No, Housing Material Stainless Steel, Lens Material Glass
