  9. Bimetal Thermom, 5 In Dial, -20 to 120F

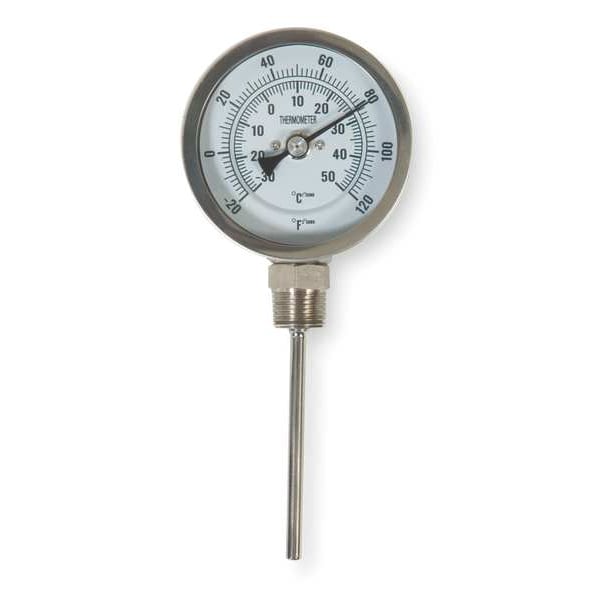

Zoro Select Bimetal Thermom, 5 In Dial, -20 to 120F 1NGD2 - main

Bimetal Thermom, 5 In Dial, -20 to 120F

  • Mfr # 1NGD2

  • Zoro # G2626556

product price: $43.25
/ea

Key Features

Accuracy
+/-1%
Connection Location
Bottom
Dial Size
5 in
Case Material
Stainless Steel
Stem Material
304 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1NGD2
Zoro #
G2626556
UPC #
190735403242
Country of Origin
China

Dimensions

Dial Size
5 in
Connection Size
1/2 in NPT
Stem Length
4 in
Stem Dia.
1/4 in
Manufacturers Warranty Length
Limited 3 yr
Manufacturer Warranty Length
3 yr
Stem Diameter
0.25 in
Thread Size
1/2 in
Dial Diameter
5 in

Details

Item
Dial Thermometer
Accuracy
+/-1%
Connection Location
Bottom
Case Material
Stainless Steel
Stem Material
304 Stainless Steel
Temp. Range (F)
-20 Degrees to 120 Degrees
Sensing Element
Bimetal
Window Material
Glass
Case
Hermetically Sealed
Temp. Range (C)
-30 Degrees to 50 Degrees
Adjustments
External
Coil Finish
Silicone for Superior Time Response and Vibration Dampening
Scale
Celsius, Fahrenheit
Shatterproof
No
Corrosion Resistant
No
Vibration Resistant
No
Application
General Purpose Industrial
Minimum Temperature C
-30 Degrees C
Graduations
2 Degrees F/1 Degrees C
Temperature Range
-20 Degrees to 120 Degrees F/-30 Degrees to 50 Degrees C
Maximum Temperature C
50 Degrees C
Process Connection
1/2 in NPT
Includes NIST-Traceable Certificate
No
Housing Material
304 Stainless Steel
Lens Material
Glass
Thread Type
NPT
Maximum Operating Pressure
Not Rated
Functions
Manual Calibration
Scale Type
Dial
Glow-in-the-Dark
No
Maximum Temperature F
120 Degrees F
Minimum Temperature F
-20 Degrees F
Long Reach
No
Thermometer Type
Industrial Dial Thermometer
Thread Gender
Male
Construction
304 Stainless Steel Housing and Stem with Glass Lens
Lead Free
No
Case Features
Hermetically Sealed
Minimum Temperature °C
-30 Degrees C
Maximum Temperature °C
50 Degrees C
Minimum Temperature °F
-20 Degrees F
Maximum Temperature °F
120 Degrees F

Description

Dial Thermometer, Temperature Range -20 Degrees to 120 Degrees F/-30 Degrees to 50 Degrees C, Stem Length 4 in, Dial Diameter 5 in, 1/2 in NPT, Bottom, Includes NIST-Traceable Certificate No, Housing Material Stainless Steel, Lens Material Glass
