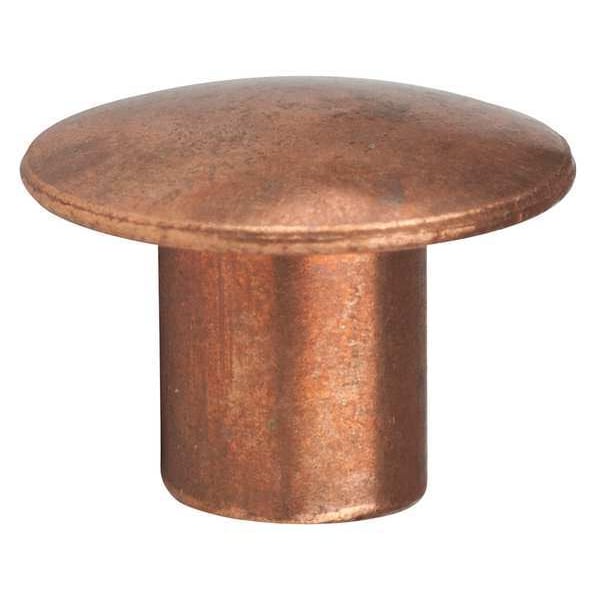

Binding Barrel, #8-32, 1/4 in Brl Lg, 13/64 in Brl Dia, Copper Plain, 2 PK
Mfr # Z4304C-CU
Zoro # G0747397
CAD Available
product price: $10.39
/pk 2, $5.20/eaKey Features
CAD Drawing
System of Measurement
Inch
Type
Female Binding Barrel
Thread Size
#8-32
Material
Copper
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Z4304C-CU
Zoro #
G0747397
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
#8-32
Barrel Length
1/4 in
Barrel Diameter
13/64 in
Barrel Dia.
13/64 in
Barrel Head Dia.
13/32 in
Dia./Thread Size
#8-32
Barrel Thread Depth
5/32 in
Barrel Head Height
1/16 in
Outside Dia.
13/64"
Grip Size
1/4 in
Barrel Head Diameter
13/32 in
Details
CAD Available
Yes
Item
Binding Barrel
System of Measurement
Inch
Type
Female Binding Barrel
Material
Copper
Finish
Plain
Barrel Head Style
Truss
Barrel Drive Type
No Drive
Head Style
Truss
Grip Range
1/4 in
Made in North America
Made in North America
Pack Size
Small
Dimensional Standards
AMPG 2000 BP.01
Description
Female Binding Barrel, Finish Plain, Material Copper, Barrel Head Style Truss, Barrel Drive Type No Drive, Thread Size #8-32, Barrel Length 1/4 in, Barrel Diameter 13/64 in, Barrel Thread Depth 5/32 in, Screw Length Not Applicable, Barrel Head Diameter 13/32 in, Barrel Head Height 1/16 in, Dimensional Standards AMPG 2000 BP.01, Grip Size 1/4 in, Includes -, Made in North America Made in North America, Pack Size Small, Package Quantity 2
