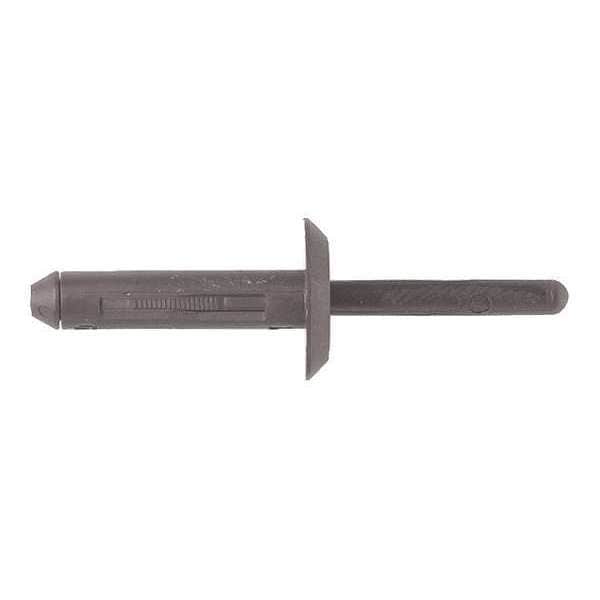

Blind Rivet, Dome Head, 1/4 in Dia., 1-1/8 in L, Nylon Body, 25 PK
Mfr # 5770PK
Zoro # G5103244
CAD Available
product price: $6.29
/pk 25, $0.25/eaKey Features
CAD Drawing
Head Type
Dome
Body Material
Nylon
Mandrel Material
Nylon
Rivet Diameter
1/4 in
Grip Range
0.313 in to 0.406 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5770PK
Zoro #
G5103244
UPC #
-
Country of Origin
United States
Dimensions
Rivet Diameter
1/4 in
Body Length
1-1/8 in
Hole Size
1/4 in
Head Dia.
21/32 in
Head Height
3 mm
Head Diameter
21/32 in
Shank Diameter
0.25 in
Maximum Hole Diameter
0.25 in
Maximum Material Thickness
13/32 in
Minimum Material Thickness
5/16 in
Details
CAD Available
Yes
Item
Blind Rivet
Head Type
Dome
Body Material
Nylon
Mandrel Material
Nylon
Grip Range
0.313 in to 0.406 in
System of Measurement
Inch
Color
Black
Blind Rivet Type
Open End
Material Grade/Class
Ungraded
Description
Blind Rivet,1/4 in dia,PK25, System of Measurement Inch, Body Length 1 1/8 in, Shank Diameter 0.25 in, Product Type Blind Rivet, Body Material Nylon, Head Type Dome, Head Diameter 21/32 in, Maximum Hole Diameter 0.25 in, Minimum Material Thickness 5/16 in, Maximum Material Thickness 13/32 in, Material Grade/Class Ungraded, Mandrel Material Nylon, Color Black, Package Quantity 25
