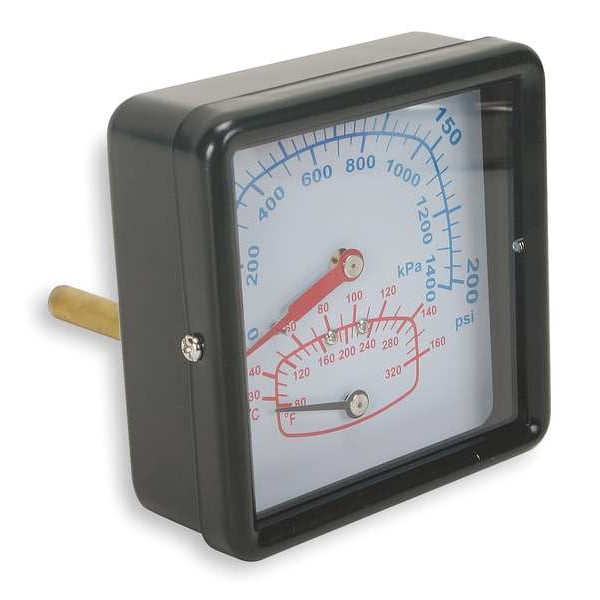

Boiler Gauge, Square, 0-200PSI, 80 to 320 F

original price: $26.35
9% off
new price: $23.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Boiler Gauge Type Square Boiler Gauge
  • Boiler Gauge Case Height 3 11/16 in
  • Pressure Range 0 to 200 psi
  • Boiler Gauge Case Width 3 11/16 in
  • Manufacturers Warranty Length 1 yr
See all product information

Product Information

Dimensions

Boiler Gauge Case Height 3 11/16 in
Boiler Gauge Case Width 3 11/16 in
Manufacturers Warranty Length 1 yr
Gauge Connection Size 1/2 in
Boiler Gauge Stem Length 1.4 in
Stem Length (In.) 1.4
Boiler Gauge Stem Extension Length 1.4 in
Stem Insertion Length 1.4 in
Process Connection Size 1/2 in
Manufacturer Warranty Length 1 yr
Case Height 3.687 in
Case Width 3.687 in
Nominal Dial Size 3 11/16 in

Details

Boiler Gauge Type Square Boiler Gauge
Item Square Boiler Gauge
Pressure Range 0 to 200 psi
Gauge Connection Location Lower Back
Gauge Connection Type MNPT
Gauge Primary Range Values 0 to 200
Gauge Primary Range Units psi
Gauge Accuracy +/-3-2-3%
Boiler Gauge Temp. Range (F) 80 Degrees to 320 Degrees
Basic Gauge Lens Material Glass
Socket Material Brass
Temp. Range (C) 30 Degrees to 160 Degrees
Boiler Gauge Temp. Range - F 80 Degrees to 320 Degrees
Tube Material Bronze
Case Material Steel
Stem Extension (In.) 1.4
Basic Gauge Case Material Steel
Case Color Black
Window Glass
Temp. Accuracy +/-3%
Basic Gauge Wetted Parts Brass / Bronze
Dial Face Material Glass
Gauge Case Material Steel
Accuracy Scale Mid-Scale
Scale Type Single
Sensor Material Bronze
Temperature Range °C 30 Degrees to 160 Degrees C
Process Connection Gender Male
Neck Extension 1.4 in
Lens Material Plastic
Pressure Accuracy +/-3-2-3%
Process Temperature Range 60 Degrees to 320 Degrees F
Hazardous Location Rating Not Rated
Pressure Gauge Type Tridicator Boiler Gauge
Process Connection Location Lower Back
Temperature Accuracy +/-3.00%
Temperature Scale Units Degrees C, Degrees F
Compatible Process Media Water
Temperature Range °F 80 Degrees to 320 Degrees F
Case Shape Square
Primary Scale Units psi
Dial Color White
Process Connection Type NPT
Primary Pressure Range 0 to 200
Pressure Range Type Pressure
Application Boilers
Temperature Range °F 80 Degrees to 320 Degrees F
Temperature Range °C 30 Degrees to 160 Degrees C

Description

Square Boiler Gauge, Boiler Gauge Case Height 3 11/16 in, Boiler Gauge Case Width 3 11/16 in, Gauge Connection Location Lower Back, Gauge Connection Type MNPT, Gauge Connection Size 1/2 in, 0 to 200, psi, Gauge Accuracy +/-3-2-3 Percent, Basic Gauge Case Material Steel, Basic Gauge Wetted Parts Brass / Bronze, Basic Gauge Lens Material Glass, 80 Degrees to 320 Degrees Boiler Gauge Temp. Range - F, Temp. Range (C) 30 Degrees to 160 Degrees , Temp. Accuracy +/-3 Percent, Case Material Steel
