  11. Bolt Hole Caster, 220 lb. Load, Gray Wheel

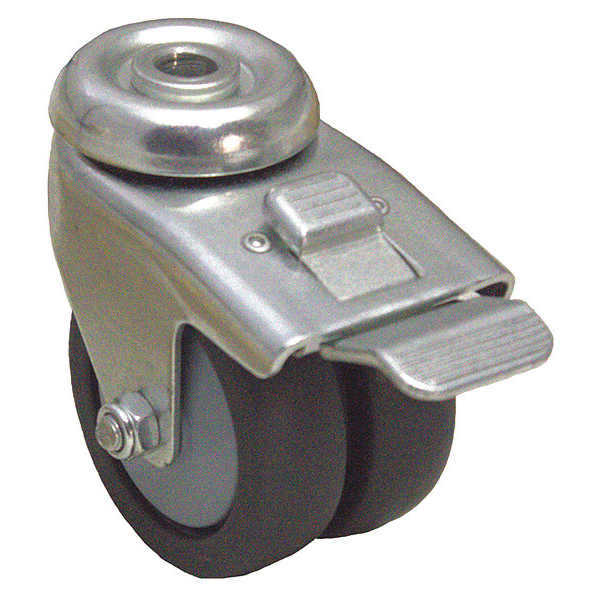

Zoro Select Bolt Hole Caster, 220 lb. Load, Gray Wheel P9S-RP030K-H-TB - main

Bolt Hole Caster, 220 lb. Load, Gray Wheel

  • Mfr # P9S-RP030K-H-TB

  • Zoro # G6882071

product price: $24.19
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Total-Lock
Load Rating
220 lb
Wheel Dia.
3 in
Wheel Width
2 x 7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P9S-RP030K-H-TB
Zoro #
G6882071
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
2 x 7/8 in
Mounting Height
4 1/16 in
Mounting Bolt Dia.
1/2 in
Overall Height
3-15/16 in
Bolt Hole Dia.
1/2 in
Tire Thickness
7/16 in
Swivel Radius
2-9/16 in

Details

Item
Swivel Low Profile Plate Hollow Kingpin Caster With Total-Lock
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Total-Lock
Load Rating
220 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Ball
Caster Brake Type
Total Lock
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Polypropylene
Core Color
Gray
Application
Retail, Industrial, Commercial
Features
Push/Pull Force Reduction
Standards
RoHS, ICWM
Includes
Thread Guards, Total-Lock
Caster Core Material
Polypropylene
System of Measurement
Inch
Caster Raceway
Double Ball
Caster Wheel Bearings
Precision Ball
Caster Wheel/Tread Material
Thermoplastic Rubber
Wheel Color
Gray
Caster Brake Included
Yes
Frame Material
Steel
Caster Temp. Range Available
Yes
Caster Load Rating Range
Medium-Heavy Duty
Caster Temp. Range
-4 Degrees To 140 Degrees F
Caster Wheel Shape
Standard
Caster Stem Type
Hollow Kingpin
Tread Color
Gray
Tread
Standard
Caster Mounting Type
Hollow Kingpin
Tread Shape
Standard
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
85-95 Shore A
Wheel/Tread Color
Gray
Caster Swivel Lock Type
Total-Lock
Extended Lead
No
Load Capacity
220 lb
Includes Thread Guards
Yes
ESD Conductive
No
Series
P9 Series
Caster Break Type
Total Lock
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
90 Shore A
Operating Temperature - Maximum
180 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Load Capacity - Maximum
220 lb
Operating Temperature - Minimum
-20 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 220 lb Load Rating, 2 Number of Wheels, Ball, 4 in Mounting Height, 3 in Wheel Dia., 7/8 in Wheel Width, Rubber Wheel/Tread Material, 90 Shore A Wheel/Tread Hardness, Firm, Yes Non-Marking
