  11. Bolt Hole Caster, 220 lb. Load Rating

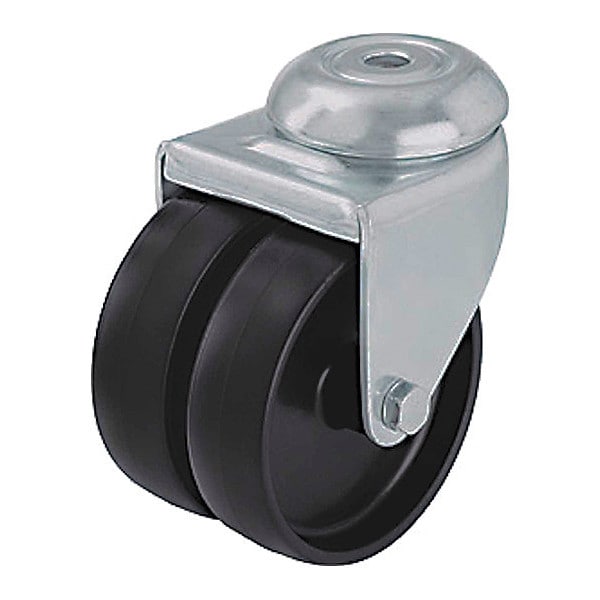

Zoro Select Bolt Hole Caster, 220 lb. Load Rating LMDA-POA 75G - main

Bolt Hole Caster, 220 lb. Load Rating

  • Mfr # LMDA-POA 75G

  • Zoro # G8520561

product price: $15.59
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
220 lb
Wheel Dia.
75 mm
Wheel Width
2 x 23 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LMDA-POA 75G
Zoro #
G8520561
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
2 x 23 mm
Mounting Height
3 7/8 in
Mounting Bolt Dia.
M10
Bolt Hole Dia.
3/8 in
Caster Thread Size
M8
Overall Height
98 mm
Thread Size
M8
Swivel Radius
71.5 mm

Details

Item
Swivel Plate Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
220 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Plain
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Retail, Industrial, Commercial
Features
Pull and Swivel Forces, Reduced Push
Standards
RoHS, ICWM
Caster Wheel Shape
Twin Wheel
Caster Temp. Range Available
Yes
Caster Wheel/Tread Material
Nylon
Caster Load Rating Range
Light Duty
Caster Temp. Range
-25 Degrees To 80 Degrees C
Replacement Wheel
Mfr. No. POA 75/8G
System of Measurement
Metric
Caster Stem Type
Threaded Bolt Hole
Caster Core Material
Nylon
Caster Brake Included
No
Caster Wheel Bearings
Plain
Caster Raceway
Double Ball
Wheel Color
Black
Tread
Standard
Tread Color
Black
Caster Mounting Type
Hollow Kingpin
Swivel Raceway Type
Double Ball
Operating Temperature Range
-20 Degrees to 180 Degrees F
Tread Shape
Standard
Wheel/Tread Hardness
70 Shore D
Wheel/Tread Color
Black
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Load Capacity
100 kg
Series
LMDA Series
ESD Conductive
No
Caster Break Type
No Brake Included
Caster Features
Corrosion-Resistant, Easy Turn, Low-Profile, Maintenance-Free
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Load Capacity - Maximum
220 lb
Compatible Wheel Manufacturer Model Number
POA 75/8G
Wheel Hardness Rating
70 Shore D

Description

Bolt-Hole Caster, 3/8 in Bolt Hole Dia., 3/8 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 220 lb Load Rating, 2 Number of Wheels, Plain, 3 4/5 in Mounting Height, 3 in Wheel Dia., 7/8 in Wheel Width, Nylon Wheel/Tread Material, 70 Shore D Wheel/Tread Hardness, Hard, Yes Non-Marking
