Shop ZORO SELECT

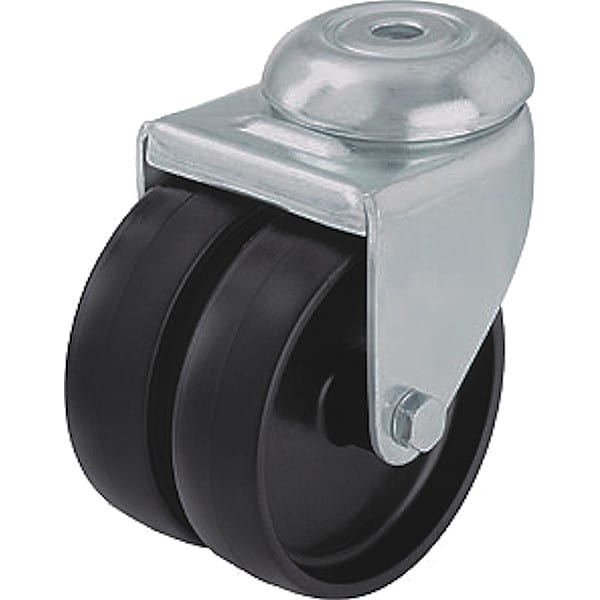

Bolt-Hole Caster, 2"dia, Swivel, Nylon

  • Mfr # LMDA-POA 50G

  • Zoro # G4548319

product price:  $9.55
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
175 lb
Wheel Dia.
50 mm
Wheel Width
2 x 18 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LMDA-POA 50G
Zoro #
G4548319
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
50 mm
Wheel Width
2 x 18 mm
Mounting Height
2 7/10 in
Mounting Bolt Dia.
M10
Overall Height
71 mm
Bolt Hole Dia.
3/8 in
Caster Thread Size
M8
Thread Size
M8
Swivel Radius
56 mm

Details

Item
Swivel Plate Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
175 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Plain
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Retail, Industrial, Commercial
Features
Pull and Swivel Forces, Reduced Push
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Caster Wheel/Tread Material
Nylon
Caster Brake Included
No
System of Measurement
Inch
Replacement Wheel
Mfr. No. POA 50/8G
Caster Raceway
Double Ball
Caster Swivel Lock Type
No Lock Included
Caster Stem Type
Threaded Bolt Hole
Load Capacity
80 kg
Wheel Color
Black
Caster Load Rating Range
Light Duty
Caster Wheel Bearings
Plain
Caster Core Material
Nylon
Caster Temp. Range
-25 Degrees To 80 Degrees C
Caster Wheel Shape
Twin Wheel
Swivel Raceway Type
Double Ball
Tread Shape
Twin Wheel
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel/Tread Hardness
70 Shore D
Wheel/Tread Color
Black
Extended Lead
No
ESD Conductive
No
Caster Mounting Type
Hollow Kingpin
Caster Break Type
No Brake Included
Includes Thread Guards
No
Tread
Standard
Series
LMDA Series
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible Wheel Manufacturer Model Number
POA 50/8G
Load Capacity - Maximum
175 lb
Wheel Hardness Rating
70 Shore D
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
175 Degrees F
Caster Features
Corrosion-Resistant, Easy Turn, Low-Profile, Maintenance-Free

Description

Bolt-Hole Caster, 3/8 in Bolt Hole Dia., 3/8 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 175 lb Load Rating, 2 Number of Wheels, Plain, 2 7/10 in Mounting Height, 2 in Wheel Dia., 3/4 in Wheel Width, Nylon Wheel/Tread Material, 70 Shore D Wheel/Tread Hardness, Hard, Yes Non-Marking
