  11. Bolt-Hole Caster, 2"dia, Swivel, Rubber

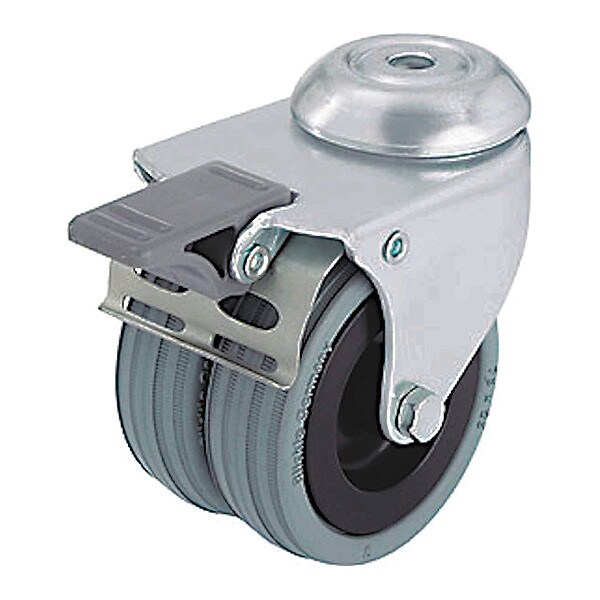

Zoro Select Bolt-Hole Caster, 2"dia, Swivel, Rubber LMDA-VPA 50G-FI - main

Bolt-Hole Caster, 2"dia, Swivel, Rubber

  • Mfr # LMDA-VPA 50G-FI

  • Zoro # G4547713

product price: $20.25
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
150 lb
Wheel Dia.
50 mm
Wheel Width
2 x 18 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LMDA-VPA 50G-FI
Zoro #
G4547713
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
50 mm
Wheel Width
2 x 18 mm
Mounting Height
2 3/4 in
Mounting Bolt Dia.
M10
Overall Height
71 mm
Bolt Hole Dia.
3/8 in
Caster Thread Size
M8
Thread Size
M8
Swivel Radius
56 mm
Tire Thickness
1/8 in

Details

Item
Swivel Plate Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
150 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Plain
Caster Brake Type
Total Lock
Swivel Lock Type
Total Lock
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Retail, Industrial, Commercial
Features
Noise Reduction, Reduced Swivel Forces
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Swivel Lock Type
Total-Lock
Caster Load Rating Range
Light Duty
Wheel Color
Gray
Caster Wheel/Tread Material
Solid Rubber
Load Capacity
70 kg
Caster Wheel Shape
Twin Wheel
Caster Wheel Bearings
Plain
Caster Core Material
Nylon
Caster Temp. Range Available
Yes
Caster Temp. Range
-20 Degrees To 60 Degrees C
System of Measurement
Metric
Caster Stem Type
Threaded Bolt Hole
Caster Raceway
Double Ball
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. VPA 50/8G
Tread Shape
Standard
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
80 Shore A
Wheel/Tread Color
Black
Includes Thread Guards
No
Caster Break Type
Stop Fix Brake (Total Lock)
Extended Lead
No
Caster Mounting Type
Hollow Kingpin
ESD Conductive
No
Tread
Standard
Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LMDA Series
Operating Temperature - Minimum
-5 Degrees F
Wheel Hardness Rating
80 Shore A
Operating Temperature - Maximum
140 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Compatible Wheel Manufacturer Model Number
VPA 50/8G
Load Capacity - Maximum
150 lb

Description

Bolt-Hole Caster, 3/8 in Bolt Hole Dia., 3/8 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 150 lb Load Rating, 2 Number of Wheels, Plain, 2 7/10 in Mounting Height, 2 in Wheel Dia., 3/4 in Wheel Width, Rubber Wheel/Tread Material, 80 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
