  11. Bolt Hole Caster, 330 lb. Load, Swivel

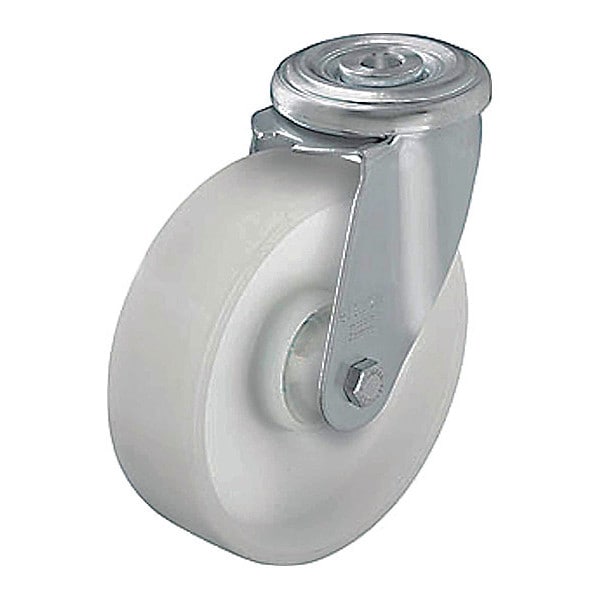

Zoro Select Bolt Hole Caster, 330 lb. Load, Swivel LER-PO 75R - main

Bolt Hole Caster, 330 lb. Load, Swivel

  • Mfr # LER-PO 75R

  • Zoro # G7278682

product price: $20.39
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
330 lb
Wheel Dia.
75 mm
Wheel Width
32 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LER-PO 75R
Zoro #
G7278682
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
32 mm
Mounting Height
3 7/8 in
Mounting Bolt Dia.
M12
Bolt Hole Dia.
1/2 in
Overall Height
100 mm
Swivel Radius
75.5 mm

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
330 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
White
Application
Retail, Industrial, Commercial, Corrosion Resistance
Features
Corrosion Resistant, Hollow, Soft Tread
Standards
RoHS, ICWM
Caster Wheel Shape
Standard
Caster Wheel/Tread Material
Medium Heavy Duty Nylon
Wheel Color
White
Caster Temp. Range Available
Yes
Caster Load Rating Range
Medium Duty
Caster Wheel Bearings
Roller
Caster Core Material
Nylon
Caster Brake Included
No
System of Measurement
Metric
Replacement Wheel
Mfr. No. PO 75/12R
Caster Temp. Range
-25 Degrees To 80 Degrees C
Caster Stem Type
Hollow Kingpin
Frame Material
Steel
Caster Raceway
Double Ball
Tread
Standard
Tread Color
White
Caster Mounting Type
Hollow Kingpin
Swivel Raceway Type
Double Ball
Operating Temperature Range
-20 Degrees to 160 Degrees F
Tread Shape
Standard
Wheel/Tread Hardness
70 Shore D
Wheel/Tread Color
White
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
ESD Conductive
No
Includes Thread Guards
No
Load Capacity
150 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Break Type
No Brake Included
Series
LER Series
Caster Features
Corrosion-Resistant
Operating Temperature - Minimum
-20 Degrees F
Load Capacity - Maximum
330 lb
Compatible Wheel Manufacturer Model Number
PO 75/12G
Wheel Hardness Rating
70 Shore D
Operating Temperature - Maximum
175 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 330 lb Load Rating, 1 Number of Wheels, Roller, 3 4/5 in Mounting Height, 3 in Wheel Dia., 1 1/4 in Wheel Width, Nylon Wheel/Tread Material, 70 Shore D Wheel/Tread Hardness, Hard, Yes Non-Marking
