Shop ZORO SELECT

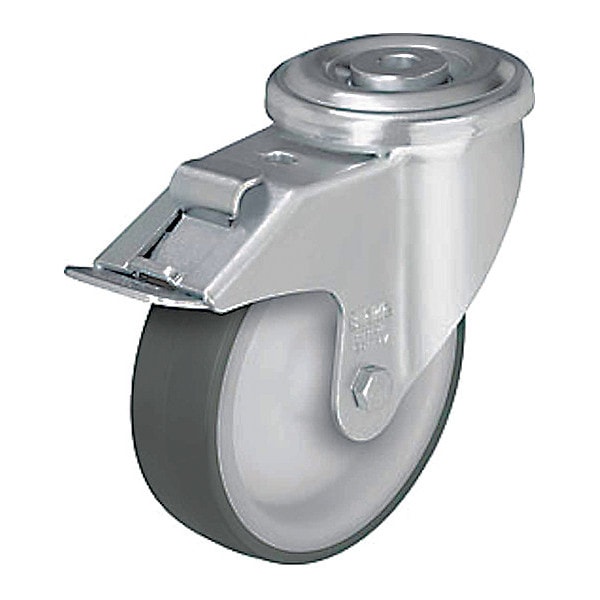

Bolt-Hole Caster, 4 7/8"dia, Swivel, PU

  • Mfr # LKR-POTH 125KA-FI

  • Zoro # G4548650

product price:
$
69.29
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
770 lb
Wheel Dia.
125 mm
Wheel Width
40 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKR-POTH 125KA-FI
Zoro #
G4548650
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 mm
Wheel Width
40 mm
Mounting Height
6 1/10 in
Mounting Bolt Dia.
M12
Bolt Hole Dia.
1/2 in
Overall Height
155 mm
Caster Thread Size
M8
Thread Size
M8
Swivel Radius
110.5 mm
Tire Thickness
5/16 in

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
770 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Caster Brake Type
Total Lock
Swivel Lock Type
Total Lock
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
White
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Floor Protective
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Temp. Range
-25 Degrees To 70 Degrees C
Caster Wheel Shape
Standard
Caster Swivel Lock Type
Total-Lock
Caster Core Material
Nylon
Caster Load Rating Range
Medium Duty
Wheel Color
Gray
Caster Raceway
Double Ball
System of Measurement
Inch
Load Capacity
350 kg
Replacement Wheel
Mfr. No. POTH 125/10K
Caster Wheel Bearings
Precision Ball
Caster Wheel/Tread Material
Heavy Duty Polyurethane
Caster Stem Type
Threaded Bolt Hole
Caster Temp. Range Available
Yes
Caster Brake Included
Yes
Swivel Raceway Type
Double Ball
Operating Temperature Range
-15 Degrees to 160 Degrees F
Tread Shape
Standard
Wheel/Tread Hardness
94 Shore A
Wheel/Tread Color
White
Extended Lead
No
Caster Break Type
Stop Fix Brake (Total Lock)
Series
LKR Series
Tread
Standard
Caster Mounting Type
Hollow Kingpin
Includes Thread Guards
No
Tread Color
Gray
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Compatible Wheel Manufacturer Model Number
POTH 125/10K
Operating Temperature - Maximum
160 Degrees F
Wheel Hardness Rating
94 Shore A
Load Capacity - Maximum
770 lb
Caster Features
Corrosion-Resistant, Maintenance-Free
Operating Temperature - Minimum
-5 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 770 lb Load Rating, 1 Number of Wheels, Ball, 6 1/10 in Mounting Height, 4 7/8 in Wheel Dia., 1 5/8 in Wheel Width, Polyurethane Wheel/Tread Material, 94 Shore A Wheel/Tread Hardness, Hard, Yes Non-Marking
