  11. Bolt Hole Caster, 7-7/8" Wheel dia.
Zoro Select Bolt Hole Caster, 7-7/8" Wheel dia. LER-ALTH 200K - main

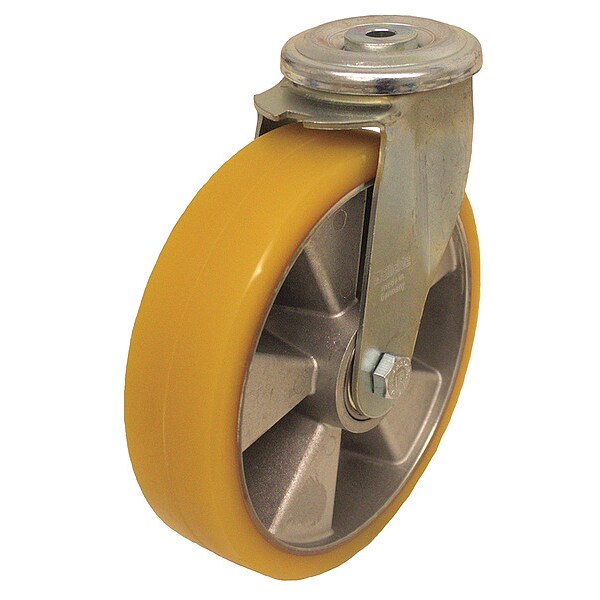

Bolt Hole Caster, 7-7/8" Wheel dia.

  • Mfr # LER-ALTH 200K

  • Zoro # G8518093

product price: $106.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
660 lb
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LER-ALTH 200K
Zoro #
G8518093
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/4 in
Mounting Bolt Dia.
1/2 in
Overall Height
1760 lb
Bolt Hole Dia.
1/2 in
Tire Thickness
1/2 in
Swivel Radius
6-1/8 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
660 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Aluminum
Core Color
Silver
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Floor Protection
Standards
RoHS, ICWM
System of Measurement
Inch
Caster Brake Included
No
Caster Wheel/Tread Material
Extrathane Polyurethane
Caster Load Rating Range
Medium Duty
Caster Core Material
Aluminum
Caster Temp. Range
-25 Degrees To 70 Degrees C
Frame Material
Steel
Caster Temp. Range Available
Yes
Caster Stem Type
Hollow Kingpin
Replacement Wheel
Mfr. No. ALTH 200/20K
Caster Wheel Shape
Standard
Wheel Color
Yellow
Caster Raceway
Double Ball
Caster Wheel Bearings
Precision Ball
Tread
Standard
Tread Color
Light Brown
Caster Mounting Type
Hollow Kingpin
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel/Tread Hardness
92 Shore A
Wheel/Tread Color
Silver
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Break Type
No Brake Included
Series
LER Series
ESD Conductive
No
Includes Thread Guards
No
Load Capacity
1760 lb
Compatible Wheel Manufacturer Model Number
ALTH 200/20K
Wheel Hardness Rating
92 Shore A
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Caster Features
Corrosion-Resistant, Maintenance-Free
Load Capacity - Maximum
660 lb

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 660 lb Load Rating, 1 Number of Wheels, Ball, 9 1/5 in Mounting Height, 8 in Wheel Dia., 2 in Wheel Width, Polyurethane Wheel/Tread Material, 92 Shore A Wheel/Tread Hardness, Firm, Yes Non-Marking
